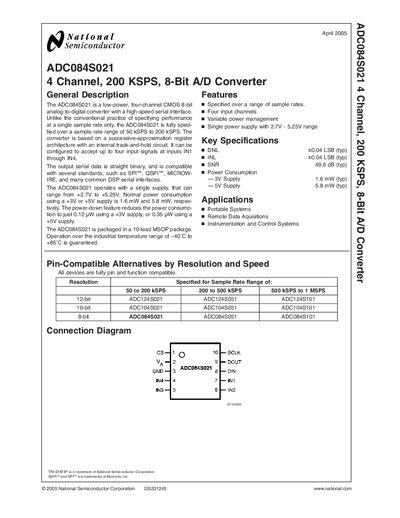

National Semiconductor ADC084S021 Datasheet
The ADC084S021 is a low‑power, four‑channel CMOS 8‑bit analog‑to‑digital converter with a serial interface. It operates from a single supply voltage of +2.7 V to +5.25 V and supports sample rates from 50 kSPS up to 200 kSPS. The device is offered in a 10‑lead MSOP package and is rated for industrial temperature operation from –40 °C to +85 °C.
Key features include variable power management, four input channels, typical power consumption of 1.6 mW at 3 V and 5.8 mW at 5 V, and performance specifications such as DNL +0.04 LSB, INL +0.04 LSB, and SNR ≈ 49.6 dB. The document contains ordering information, pin descriptions, absolute maximum ratings, electrical characteristics, timing diagrams, and application notes.
National Semiconductor ADC084S021 specifications
| Supply Voltage Range | +2.7 V to +5.25 V |
|---|---|
| Power Consumption (3 V) | 1.6 mW typ |
| Power Consumption (5 V) | 5.8 mW typ |
| Differential Non‑Linearity (DNL) | +0.04 LSB typ |
| Integral Non‑Linearity (INL) | +0.04 LSB typ |
| Signal‑to‑Noise Ratio (SNR) | 49.6 dB typ |
| Package Type | 10‑lead MSOP |
| Operating Temperature Range | -40 °C to +85 °C |
All National Semiconductor ADC084S021 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the ADC084S021 support?
The device operates from +2.7 V up to +5.25 V.
How much power does the ADC084S021 consume at a 3 V supply?
Typical power consumption is 1.6 mW at a 3 V supply.
What supply voltage range does the ADC084S021 support?
It operates from a single supply of 2.7 V to 5.25 V.
How many analog input channels are available?
The device provides four analog input channels (IN1‑IN4).
