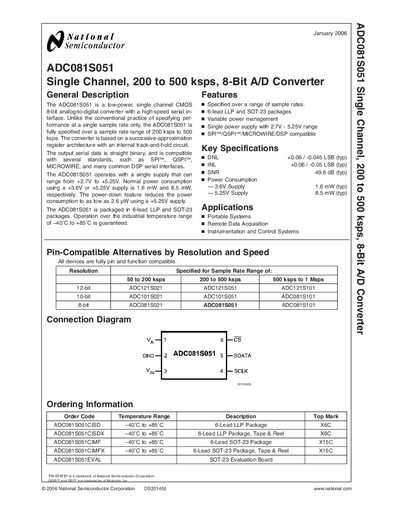

The ADC081S051 is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. It is fully specified over a sample rate range of 200 ksps to 500 ksps and is based on a successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary and compatible with several standards. The ADC081S051 operates with a single supply ranging from +2.7V to +5.25V. Power consumption ranges from 1.6 mW to 8.5 mW depending on the supply voltage. The power-down feature reduces power consumption to as low as 2.6 µW. The ADC081S051 is available in 6-lead LLP and SOT-23 packages and is suitable for operation over the industrial temperature range of -40°C to +85°C.
The ADC081S051 is a low‑power, single‑channel 8‑bit analog‑to‑digital converter featuring a successive‑approximation register architecture and an internal track‑and‑hold circuit. It operates from a single supply of 2.7 V to 5.25 V and offers power‑down consumption as low as 2.6 pW.
The device is offered in 6‑lead LLP and SOT‑23 packages, supports SPI™, QSPI™, MICROWIRE and other DSP serial interfaces, and is rated for industrial temperature ranges (‑40 °C to +85 °C). Detailed electrical, timing, and mechanical specifications are provided for designers.
| Sample Rate Range | 200 ksps to 500 ksps |
|---|---|
| Supply Voltage Range | 2.7 V to 5.25 V |
| Differential Non‑Linearity (DNL) | +0.06 / -0.045 LSB (typ) |
| Signal‑to‑Noise Ratio (SNR) | 49.6 dB (typ) |
| Package Options | 6‑lead LLP, SOT‑23 |
| Operating Temperature Range | -40 °C to +85 °C |
The ADC081S051 operates from 200 ksps up to 500 ksps.
It can be powered from a single supply between 2.7 V and 5.25 V.
The converter is offered in 6‑lead LLP and SOT‑23 packages.
