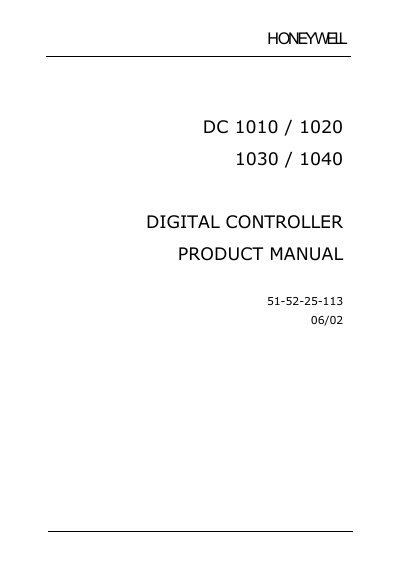

Honeywell DC1010/1020/1030/1040 Digital Controller User Manual
This manual describes the front‑panel layout, LED indicators and key functions of the Honeywell DC series digital controllers. It explains how to set parameters, use auto‑tuning, and navigate the four operating levels for configuration, calibration and lock functions.
Additional sections cover error information, program level settings, and application examples such as single‑phase and three‑phase zero‑crossover control, motor‑valve control and TRIAC module control. The document also includes parameter ranges and lock codes for advanced configuration.
Honeywell DC1010 specifications
| Output range (percentage) | 0~200% ON/OFF at P=0 |
|---|---|
| Integral time range | 0~3600 sec |
| Derivative time range | 0~900 sec |
| Dead‑time compensation range | 0~1000 sec |
| Current output range | LSPL~USPL |
Source: Honeywell DC1010/1020/1030/1040 Digital Controller User Manual
All Honeywell DC1010 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I start auto‑tuning?
Set the AT (Auto‑Tuning) parameter to ‘YES’; the controller will then initiate auto‑tuning and store the PID parameters when finished.
From: Honeywell DC1010/1020/1030/1040 Digital Controller User Manual
What do the LED indicators mean?
OUT1 and OUT2 indicate output status (green), AT shows auto‑tuning (yellow), PRO indicates program mode (yellow), AL1/AL2 are alarm indicators (red), and MAN shows manual mode (yellow).
From: Honeywell DC1010/1020/1030/1040 Digital Controller User Manual
What communication interfaces are supported?
The controllers can use RS‑232 or RS‑485 with optional Modbus RTU/ASCII protocols, up to 38 400 bps.
From: Honeywell DC1010/DC1020/DC1030/DC1040 Digital Controllers User Manual
How many programs can be stored in the controller?
Two programs can be stored, each with up to eight segments.
From: Honeywell DC1010/DC1020/DC1030/DC1040 Digital Controllers User Manual
