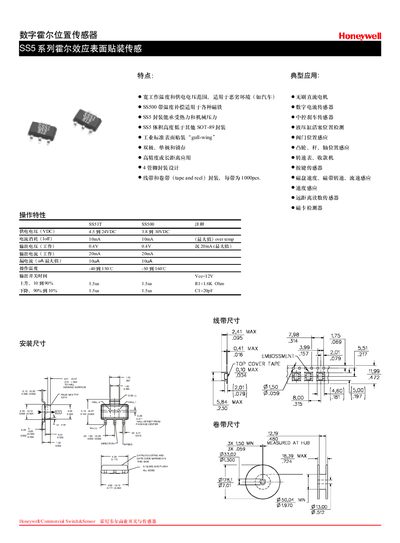

Honeywell SS5 Series Surface Mount Hall Effect Sensor User Manual
The SS5 series are digital Hall‑effect position sensors offered in a 4‑pin SOT‑89 gull‑wing surface‑mount package. They are designed for harsh environments with wide supply voltage and temperature ranges, making them suitable for automotive and industrial use.
The manual lists key electrical parameters such as supply voltage, current consumption, output current and leakage, as well as magnetic pole characteristics and temperature limits. It also describes typical applications including brushless DC motors, digital current sensing, brake sensors, hydraulic cylinder position detection, and speed sensing. This manual is written in Chinese.
Honeywell SS5 specifications
| Supply voltage (VDC) | 4.5–24 VDC |
|---|---|
| Current consumption (Ioff) | 10 mA |
| Output current (working) | 20 mA |
| Leakage current (max) | 10 µA |
| Operating temperature range | -40 °C to 150 °C |
| Package type | 4‑pin SOT‑89 gull‑wing surface‑mount |
Source: Honeywell SS5 Series Surface Mount Hall Effect Sensor User Manual
All Honeywell SS5 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the supply voltage range for the SS5 series sensors?
The sensors operate from 4.5 VDC up to 24 VDC (some variants up to 30 VDC).
From: Honeywell SS5 Series Surface Mount Hall Effect Sensor User Manual
What temperature range can the SS5 series operate in?
They are rated for temperatures from –40 °C to 150 °C.
From: Honeywell SS5 Series Surface Mount Hall Effect Sensor User Manual
What is the supply voltage range for the SS5 series sensor?
The supply voltage ranges from 4.5 VDC to 24 VDC (some models up to 30 VDC).
What is the maximum operating temperature of the SS5 sensor?
The sensor can operate from –40 °C up to 150 °C.
