Key facts
- Brand
- Honeywell
- Model
- F116
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-07
Start here

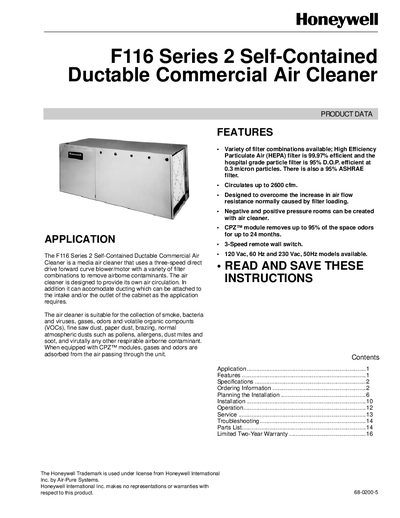

Honeywell F116 Series 2 Self-Contained Ductable Commercial Air Cleaner Handbook
The Honeywell F116 Series 2 Self-Contained Ductable Commercial Air Cleaner is a media‑type unit that provides its own airflow via a three‑speed direct‑drive blower. It can be equipped with a variety of filter combinations, including HEPA, DOP, ASHRAE and optional CPZ sorbent modules for odor removal.
The handbook covers product features, detailed specifications, ordering information, installation planning, wiring, operation, troubleshooting, parts list and the two‑year limited warranty. Safety warnings and duct‑design guidelines are also included to ensure proper and safe use.
Honeywell F116 specifications
| Maximum airflow | 2600 cfm |
|---|---|
| Electrical ratings | 120 Vac / 60 Hz and 230 Vac / 50 Hz models |
| HEPA filter efficiency | 99.97% at 0.3 µm |
| DOP filter efficiency | 95% at 0.3 µm |
| ASHRAE filter efficiency | 95% at 0.3 µm |
| CPZ sorbent module odor removal | up to 95% odor removal for 24 months |
Source: Honeywell F116 Series 2 Self-Contained Ductable Commercial Air Cleaner Handbook
All Honeywell F116 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum airflow of the F116 Series 2 air cleaner?
The unit can circulate up to 2600 cfm.
From: Honeywell F116 Series 2 Self-Contained Ductable Commercial Air Cleaner Handbook
What electrical voltages are offered for the F116 Series 2?
Models are available in 120 Vac / 60 Hz and 230 Vac / 50 Hz.
From: Honeywell F116 Series 2 Self-Contained Ductable Commercial Air Cleaner Handbook
What is the maximum airflow capacity of the F116 Series 2 air cleaner?
The unit can circulate up to 2600 cfm.
From: Honeywell F116 Series 2 Commercial Air Cleaner User Manual
What voltage options does the air cleaner support?
Both 120 Vac / 60 Hz and 230 Vac / 50 Hz models are offered.
From: Honeywell F116 Series 2 Commercial Air Cleaner User Manual
