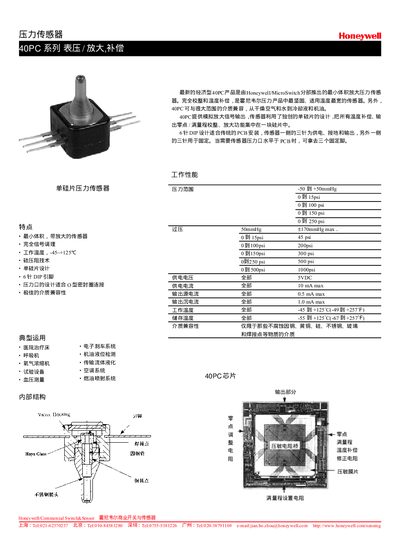

Honeywell 40PC Pressure Sensor Manual
This manual describes the Honeywell 40PC pressure sensor series, including its features, typical applications, and internal construction. It outlines the sensor's pressure ranges, output types, and environmental specifications.
The document also provides wiring diagrams, pin configurations, and installation dimensions, along with typical electrical characteristics such as supply voltage, output current, and sensitivity for various pressure ranges. This manual is written in Chinese.
Honeywell 40PC specifications
| Pressure range | -0 to +500 mmHg, 0 to 15 psi, 0 to 100 psi, 0 to 250 psi, 0 to 500 psi, 0 to 1000 psi |
|---|---|
| Output type | 6‑pin DPT |
| Supply voltage | 5 VDC |
| Operating temperature | -45 °C to +125 °C |
| Maximum output current | 10 mA max |
| Sensitivity (0‑100 psi) | 40.0 mV/psi (typical) |
| Accuracy (full scale) | 0.15 % FS (typical) |
