Start here

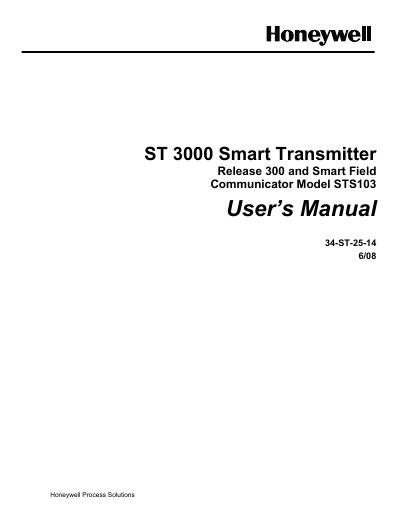

Honeywell ST 3000 Smart Transmitter & STS103 Smart Field Communicator User Manual
This manual provides step‑by‑step instructions for installing, wiring, configuring, starting up, operating, maintaining, calibrating, and servicing Honeywell’s ST 3000 Release 300 series smart transmitters together with the STS103 Smart Field Communicator used as the operator interface.
It includes quick‑start references, detailed configuration procedures, troubleshooting guidance, parts lists, wiring diagrams, and specifications for both the transmitter and the optional local smart meter option.
Honeywell ST 3000 specifications
| Output options | Analog 4‑20 mA, DE digital, HART, FOUNDATION™ Fieldbus |
|---|---|
| Supply voltage | 10.8 to 42.4 Vdc at terminals |
| Stability | +/-0.01% per year |
| Reliability | 470 years MTBF |
| Accuracy (Analog Mode, STR93D) | +/-0.20% of calibrated span or URV |
| Turndown ratio (STR93D) | 110 to 1 |
| Maximum pressure (flange rating) | 750 psi (52 bar) |
Source: Honeywell ST 3000 Series 900 Smart Transmitter Specification and Model Selection Guide
All Honeywell ST 3000 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I obtain technical support for the ST 3000 Smart Transmitter?
Contact Honeywell’s Solution Support Center by phone at 1‑800‑423‑9883 (U.S.) or 1‑602‑313‑6510 (outside the U.S.).
From: Honeywell ST 3000 Smart Transmitter Installation Guide
What information should I have ready before contacting support?
Have the complete model number, serial number, and software revision number from the transmitter nameplate.
From: Honeywell ST 3000 Smart Transmitter Installation Guide
What output signals are available for the ST 3000 Series 900 transmitters?
They can provide a 4‑20 mA analog output, Honeywell Digitally Enhanced (DE) digital output, HART, or FOUNDATION™ Fieldbus output.
From: Honeywell ST 3000 Series 900 Smart Transmitter Specification and Model Selection Guide
What is the stability and reliability of the ST 3000 Series 900 transmitters?
The transmitters have a stability of +/-0.01% per year and a reliability of 470 years MTBF.
From: Honeywell ST 3000 Series 900 Smart Transmitter Specification and Model Selection Guide
How can I change the mode of operation of the transmitter?
Select “Changing Mode of Operation” in Section 5.4 to switch between analog and digital (DE) modes.
From: Honeywell ST 3000 Smart Transmitter & STS103 Smart Field Communicator User Manual
How do I configure the local smart meter using pushbuttons?
Refer to Section 6.12 “Configuring Smart Meter Using Pushbuttons” for the step‑by‑step procedure.
From: Honeywell ST 3000 Smart Transmitter & STS103 Smart Field Communicator User Manual
