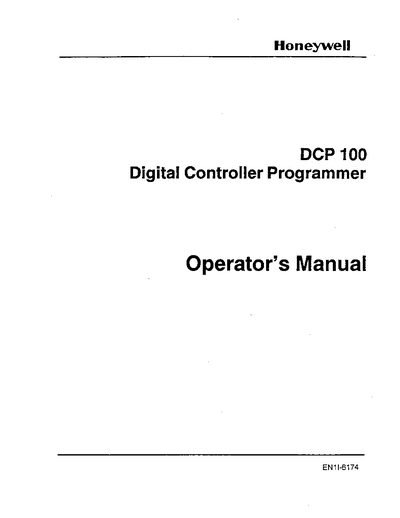

Honeywell DCP 100 Digital Controller Programmer Operator Manual
The DCP 100 Digital Controller Programmer is a compact, DIN‑rail mounted controller that provides PID control with self‑tune and pre‑tune capabilities. It supports universal inputs (thermocouple, RTD Pt100 or DC linear) and a wide 90‑264 V AC power range, making it suitable for a variety of industrial process applications.
The manual describes the four operating modes (Base, Program Run, Program Define, Controller Define), front‑panel keys, alarm status display, and optional features such as RS485 communication, remote program control, and additional relay outputs. Installation and configuration are covered in a separate Installation Manual referenced in the preface.
Honeywell DCP 100 specifications
| Maximum segments per program | 121 |
|---|---|
| Universal input types | Thermocouple, RTD (Pt100) or DC linear |
| Power supply range | 90‑264 V AC, 50/60 Hz |
| Front panel sealing | NEMA 4 standard |
| Depth behind panel | 100 mm |
| Serial communications | RS485 |
| Optional event relay outputs | Up to four |
Source: Honeywell DCP 100 Digital Controller Programmer Operator Manual
All Honeywell DCP 100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What power supply voltage range does the DCP 100 accept?
It operates from a universal power supply of 90 to 264 V AC at 50/60 Hz.
From: Honeywell DCP 100 Digital Controller Programmer Operator Manual
Which communication interface is provided on the DCP 100?
The device includes an RS485 serial communications port.
From: Honeywell DCP 100 Digital Controller Programmer Operator Manual
What is the standard power supply voltage range for the DCP 100?
It uses a 96‑264 V 50/60 Hz power supply as standard.
From: Honeywell DCP 100 Digital Controller Programmer Installation Guide
Is a 24 V AC/DC supply option available?
Yes, a 24 V AC/DC option is available.
From: Honeywell DCP 100 Digital Controller Programmer Installation Guide
