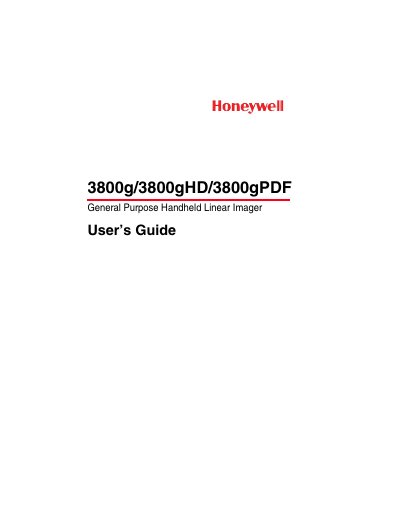

Honeywell 3800g/3800gHD/3800gPDF Handheld Linear Imager User Guide
This guide provides installation, configuration and programming instructions for the Honeywell 3800g, 3800gHD and 3800gPDF handheld linear imagers. It includes details on unpacking, connecting to various interfaces, setting symbologies, and using the Visual Xpress software.
The manual also contains product specifications, maintenance procedures, warranty information and customer support resources, helping users operate the device reliably in point‑of‑sale and industrial environments.
Honeywell 3800GPDF specifications
| Dimensions (Typical) | Height 5.9 in, Length 4.4 in, Width 3.1 in |
|---|---|
| Weight | 5.6 ounces (160 g) |
| Light Source | 630 nm red LED @ 800 µW max radiant power |
| Scan Rate | 270 scans per second |
| Skew Angle | ±65 degrees |
| Voltage Requirements | 4.5‑5.5 VDC at imager |
| Operating Temperature Range | 32 °F to +122 °F (0 °C to +50 °C) |
| IP Rating | IP41 |
Source: Honeywell 3800g/3800gHD/3800gPDF Handheld Linear Imager User Manual
All Honeywell 3800GPDF documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the voltage requirements for the 3800g series?
The imager requires 4.5 to 5.5 VDC supplied to the imager.
From: Honeywell 3800g/3800gHD/3800gPDF Handheld Linear Imager User Manual
What is the scan rate of the 3800g imager?
It can scan at 270 scans per second in most usages.
From: Honeywell 3800g/3800gHD/3800gPDF Handheld Linear Imager User Manual
What power sources can be used with the 3800g series?
The imager can be host‑powered via USB or run from a 12 VDC adapter that supplies 5 VDC at 2.4 A, using a UL/cUL listed power supply.
From: Honeywell 3800g/3800gHD/3800gPDF Handheld Linear Imager User Guide
What is the maximum scan rate of the 3800gHD model?
The 3800gHD and 3800gPDF models scan at up to 270 scans per second.
From: Honeywell 3800g/3800gHD/3800gPDF Handheld Linear Imager User Guide
