Key facts
- Brand
- DELL
- Model
- 3400MP
- Category
- Other Electronics
- Documents
- 9
- Languages
- EN · ZH
- Last added
- 2026-11-10
Start here

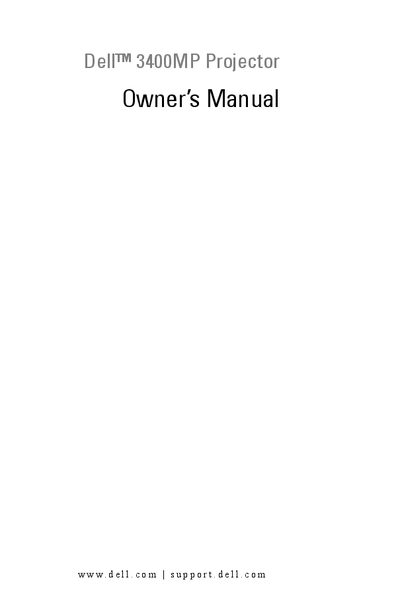

Dell 3400MP Projector Owner's Manual
The Dell 3400MP Owner's Manual covers the projector's parts and package contents, including the power cord, M1 to D-sub/USB cable, S-video cable, composite video cable, RCA to audio cable, remote control, batteries, documentation, and carrying case. It describes connecting the projector to a computer and to a DVD player using S-video, composite, or component cables.
It then explains turning the projector on and off, adjusting the projected image, zoom and focus, using the control panel and remote control, and navigating the on-screen display menus. Later sections cover video self-diagnosis, changing the lamp, specifications, contacting Dell, regulatory notices, a glossary, and an index.
DELL 3400MP specifications
| Brightness | 1500 ANSI Lumens (Max.) |
|---|---|
| Contrast Ratio | 2100:1 typical (Full On/Full Off) |
| Lamp | 156-watt user-replaceable, 3000-hour lamp (up to 4000 hours in eco mode) |
| Number of Pixels | 1024 x 768 (XGA) |
| Displayable Color | 16.7M colors |
| Projection Lens | F/2.7~2.88, f=28.43~32.73 mm, 1.15x manual zoom |
| Projection Screen Size | 31.7-246 inches diagonal |
| Projection Distance | 4.9~39.4 ft (1.5 m~12 m) |
| Weight | 2.4 lbs (1.09 kg) |
| Dimensions | 8.0 x 6.0 x 2.9 ± 0.04 inches (204 x 154 x 73.7 ± 1 mm) |
| Power Supply | Universal 100-240V AC 50-60Hz with PFC input |
| Power Consumption | 195 watts typical, 165 watts in eco mode |
| Audio | 1 speaker, 1 watt RMS |
All DELL 3400MP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Dell 3400MP Projector Owner's Manual 340 p
- Dell 3400MP Projector Owner's Manual 292 p
- Dell 3400MP Projector Owner's Manual 292 p
- Dell 3400MP Projector Owner's Manual 340 p
- Dell 3400MP Projector Owner's Manual 340 p
- Dell 3400MP Projector Owner's Manual 340 p
- Dell 3400MP Projector User Manual 292 p
- Dell 3400MP Projector Setup Guide 2 p
- Dell 3400MP Projector User Manual 340 p
Questions answered in these manuals
What resolution does the Dell 3400MP projector display?
It has 1024 x 768 (XGA) pixels.
How much does the Dell 3400MP weigh?
It weighs 2.4 lbs (1.09 kg).
What is the maximum brightness of the Dell 3400MP projector?
The maximum brightness is 1500 ANSI Lumens.
How long does the lamp last in standard mode?
The user-replaceable lamp has a life of 3000 hours.
What is the brightness of the Dell 3400MP projector?
The brightness is 1500 ANSI Lumens (Max.).
What is the native resolution of the projector?
The projector has 1024 x 768 (XGA) pixels.
