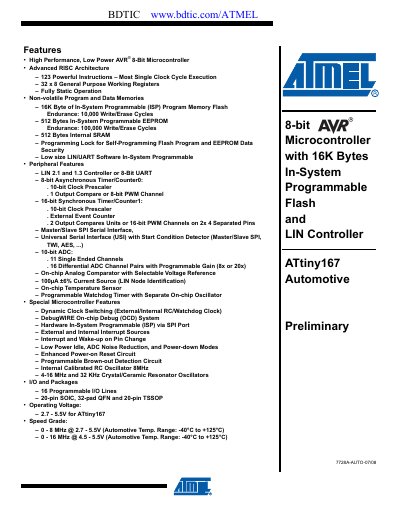

Atmel ATtiny167 8‑Bit AVR Microcontroller Datasheet
The ATtiny167 is a low‑power CMOS 8‑bit microcontroller based on Atmel's enhanced AVR RISC architecture. It offers up to 1 MIPS per MHz, a rich set of peripherals including LIN/UART, SPI, a 10‑bit ADC, watchdog timer, and multiple power‑saving modes, making it suitable for automotive and embedded applications.
The document provides a complete description of the device, including pin‑out diagrams for SOIC20, TSSOP20 and QFN32 packages, detailed register maps, CPU core architecture, electrical specifications, programming methods (ISP, parallel, serial), and typical application guidelines. It also lists ordering information, packaging options, and errata.
Atmel ATTINY167 specifications
| Operating Voltage | 2.7 V – 5.5 V |
|---|---|
| Flash Memory | 16 KB In‑System Programmable Flash |
| EEPROM | 512 bytes |
| SRAM | 512 bytes |
| General‑purpose I/O lines | 6 |
| Programmable I/O lines | 16 |
| ADC | 10‑bit, 4‑channel |
| Package options | 20‑pin SOIC, 32‑pad QFN, 20‑pin TSSOP |
All Atmel ATTINY167 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the ATtiny167?
The device operates from 2.7 V to 5.5 V.
How much Flash memory does the ATtiny167 provide?
It includes 16 KB of In‑System Programmable Flash memory.
What is the operating voltage range of the ATtiny167?
The ATtiny167 operates from 2.7 V to 5.5 V.
How much flash memory does the ATtiny167 provide?
It provides 16 KB of in‑system programmable flash memory.
