The ATtiny13 is a low‑power 8‑bit AVR microcontroller with 1 KB Flash, 64 B EEPROM, 64 B SRAM and up to 20 MHz operation.
ATtiny13 is an 8‑bit AVR® microcontroller built on an enhanced RISC core. It offers a rich instruction set, single‑cycle execution, 32 general‑purpose registers, and integrated peripherals such as a programmable watchdog, 4‑channel 10‑bit ADC, and an 8‑bit timer with PWM channels. The device is available in 8‑pin PDIP/SOIC packages and supports in‑system programming via SPI.

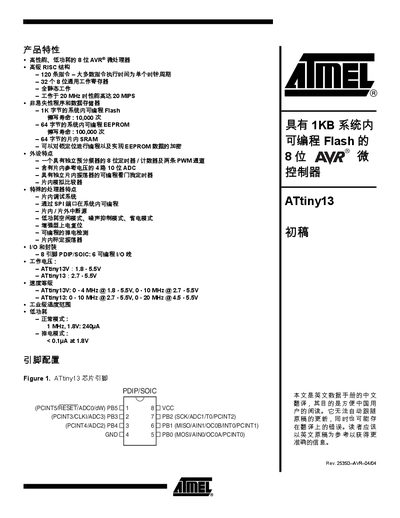

The datasheet details the pin configuration, electrical characteristics, memory organization, and revision history. It also provides programming guidelines, example code, and errata for various silicon revisions, helping developers design reliable low‑power applications. This manual is written in Chinese.
| Flash Memory | 1 KB |
|---|---|
| EEPROM | 64 B |
| SRAM | 64 B |
| I/O Pins | 6 |
| Timer/Counter | 8‑bit with 2 PWM channels |
| ADC Channels | 4 × 10‑bit |
| Watchdog Timer | Programmable, with internal oscillator |
| Operating Voltage (ATtiny13V) | 1.8 V – 5.5 V |
| Operating Voltage (ATtiny13) | 2.7 V – 5.5 V |
| Maximum Clock Speed | 20 MHz |
| Power Consumption (Normal Mode, 1 MHz, 1.8 V) | 240 µA |
| Power Consumption (Power‑down Mode, 1.8 V) | <0.1 µA |
The ATtiny13 provides 1 KB of in‑system programmable Flash memory.
It has six programmable I/O pins available in the 8‑pin PDIP/SOIC package.
In power‑down mode the device draws less than 0.1 µA at 1.8 V.
ATtiny13V operates from 1.8 V to 5.5 V, while the standard ATtiny13 operates from 2.7 V to 5.5 V.
