Key facts
- Brand
- ASUS
- Model
- P5B
- Category
- Motherboard
- Industry
- Computers
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

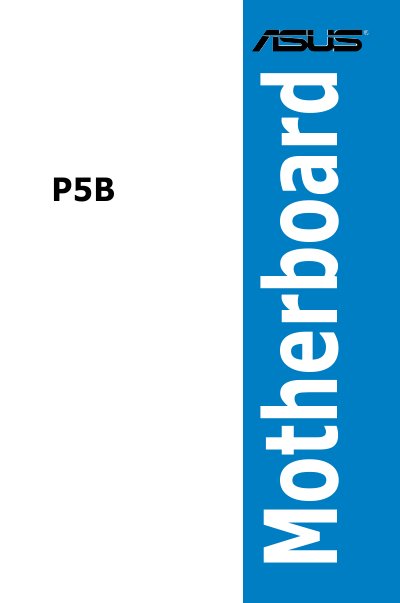

ASUS P5B User Manual
This manual introduces the ASUS P5B motherboard, covering package contents, special features, and hardware layout. It guides users through CPU installation, memory configuration, expansion slot usage, and power‑up procedures.
The guide also details BIOS configuration, software utilities, safety precautions, FCC compliance, and an appendix of CPU features such as Hyper‑Threading support. It is intended for end‑users assembling or maintaining a P5B‑based system.
ASUS P5B specifications
| CPU socket | LGA775 |
|---|---|
| Hyper‑Threading support | Yes |
| PCI Express x1 slots | 1 |
| PCI Express x16 slot | 1 |
Source: ASUS P5B User Manual
All ASUS P5B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety steps should be taken before installing the ASUS P5B motherboard?
Disconnect the power cable from the outlet, unplug all power cables before handling the motherboard, and keep the work area free of paper clips, screws, staples, dust, humidity, and extreme temperatures.
From: ASUS P5B User Manual
How do I enable Hyper‑Threading Technology on the ASUS P5B?
Install a supported Intel Pentium 4 CPU, enter the BIOS Setup, and set the Hyper‑Threading Technology item to Enabled.
From: ASUS P5B User Manual
What CPU socket does the P5B SE motherboard use?
The board uses an LGA 775 socket for compatible CPUs.
How can I update the BIOS on the P5B SE motherboard?
Use the ASUS EZ Flash 2 utility from the BIOS to flash the latest BIOS version.
How can I upgrade the BIOS on the P5B motherboard?
Use the ASUS EZ Flash 2 utility or download the latest BIOS file from the ASUS support website and follow the instructions in Chapter 4.
What safety steps should I take before installing the motherboard?
Unplug the power adapter, ensure the computer is powered off, and read all safety warnings in the manual before handling any components.
