This document provides information about the A7N8X-VM motherboard from ASUSTeK COMPUTER INC., including its features and characteristics.

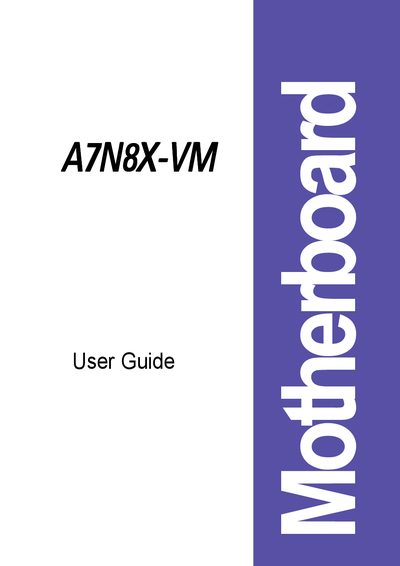

This manual covers the ASUS A7N8X-VM motherboard, detailing safety precautions, component descriptions, and step‑by‑step BIOS configuration procedures. It includes a specifications summary, connector layouts, and troubleshooting tips.
The guide also contains FCC/CDC compliance statements, power‑up control information, and instructions for saving or discarding BIOS changes. It is intended for system builders, technicians, and end users who need to install or maintain the board.
| Northbridge | NVIDIA nFORCE2 IGP |
|---|---|
| Southbridge | NVIDIA nFORCE2 MCP |
| Front Side Bus | 333 MHz |
| CPU Socket | Socket A for AMD Athlon / Athlon XP |
| Maximum Memory | 2 GB unbuffered PC2700/2100 DDR |
| AGP Slot | 1 x AGP 8X (1.5 V only) |
| USB Ports | 2 x USB 2.0, 2 x USB 1.1 |
| Form Factor | Micro‑ATX (9.6 in × 8.6 in) |
Disconnect the power cable from the electrical outlet to prevent electrical shock.
