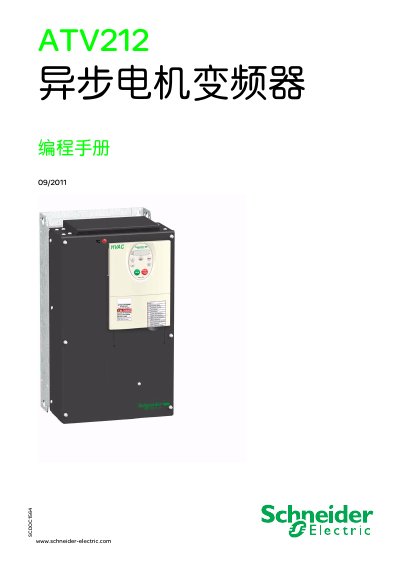

This document introduces the programming method of ATV212 inverter, including setting inverter, programming method, menu, model and parameters, maintenance and diagnosis etc.
This manual explains how to install, program and maintain the Schneider Electric ATV212 variable‑frequency drive. It covers safety information, configuration steps, menu navigation, parameter tables and troubleshooting procedures.
The document emphasizes safety precautions for installation and service, including lock‑out/tag‑out, discharge time, and voltage limits, and provides detailed chapters on motor control, I/O functions, communication settings and user‑defined parameters. This manual is written in Chinese.
| Maximum motor cable length | 30 m (100 ft) |
|---|---|
| Motor pole count range | 2 – 8 poles (750 – 3000 rpm) |
| Maximum DC bus voltage | < 42 Vdc |
All power sources must be disconnected, the breaker locked in the open position, and a 15‑minute wait is required to discharge the DC‑bus capacitor before any maintenance.
The self‑tuning routine normally completes within about 3 seconds.
The drive supports motor cable lengths up to 30 meters (100 feet).
