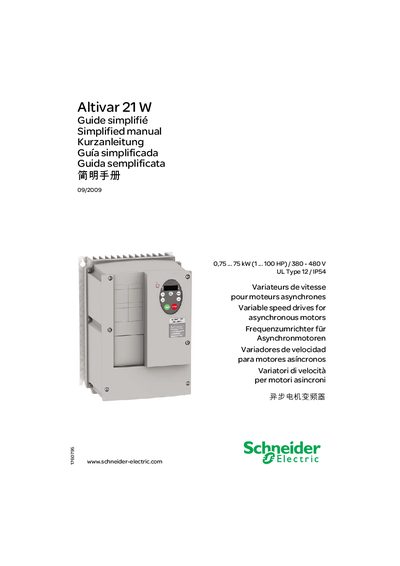

Schneider Altivar 21W Simplified Manual
The Schneider Altivar 21W simplified manual provides essential safety information, handling instructions, and step‑by‑step procedures for installing, wiring, and configuring the drive. It emphasizes the need for qualified personnel, proper grounding, and precautions before energising the unit.
Key sections cover important safety symbols, pre‑installation checks, mounting, power and control terminal connections, wiring diagrams, and basic programming. The guide also includes North‑American UL/CSA requirements and specifications for motor power and voltage ranges. This manual is written in French.
Schneider Altivar 21 specifications
| Power range | 0.75 to 7.5 kW |
|---|---|
| Voltage options | 200 V and 480 V, single‑phase or three‑phase |
| Weight (unit only) | 7,000 g to 10,950 g |
| Power consumption (0.75 kW unit) | 55 W |
| Power consumption (max) | 291 W |
| Recycling rate | more than 96 % |
| Packaging weight | 165 g (cardboard only) |
| Battery presence | None |
