This document provides information on the short-circuit current ratings for the ATV312 model.

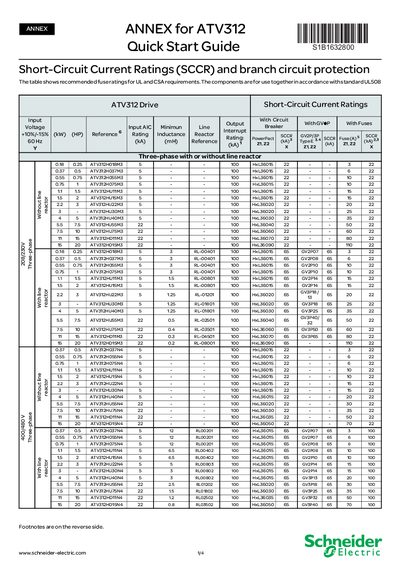

The annex supplies the short‑circuit current rating (SCCR) tables for the Schneider ATV312 drive, showing recommended fuse sizes and circuit breaker settings for both three‑phase and single‑phase installations. It also includes notes on enclosure requirements, voltage limits, and compatible starter devices.
A wiring guide is included for connecting a three‑phase ATV312 to a single‑phase power supply using GV2P or GV3P manual self‑protected combination starters, with diagrams and part numbers for reference.
| Output SCCR rating | 100 kA |
|---|---|
| Maximum protected voltage (Wye) | 480 V |
| Allowed fuse types | Class J, fast‑acting, time‑delay, or Class CC |
| Minimum enclosure volume | 3.375 × drive volume |
The ATV312 drive has a 100 kA short‑circuit current rating on its output.
Fuses may be Class J, fast‑acting, time‑delay, or Class CC.
Yes, by using GV2P or GV3P manual self‑protected combination starters as shown in the wiring diagram.
The drive can be protected up to 480 V when connected to a Wye‑type distribution system.
