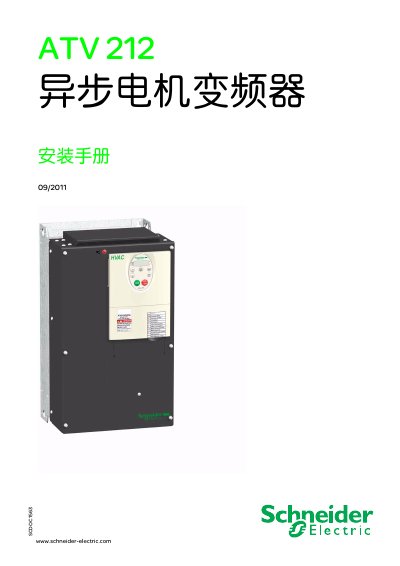

Schneider Altivar212 Installation Guide

This document provides the installation manual for the ATV 212 asynchronous motor inverter

Brand: Schneider
Category: Other
Document type: Installation Guide
Language: Chinese
Pages: 66
File format: PDF
File size: 8.5 MB
Published: 21 March, 2012
Updated: 30 September, 2023
Models: ALTIVAR212, Altivar 21
MD5 checksum: 31E7767ADB303D78D57DBCED0FCE9C1B
PDF: Schneider Altivar212 Installation Guide PDF

About this manual

This guide provides safety information, device overview, model description, and detailed installation instructions for the ATV212 VFD. It includes wiring diagrams, recommended circuit examples, and special recommendations for enclosure installation.

The manual also covers technical data such as power ratings, protection classes (IP21, IP55), and conversion information from older ATV21 units. Maintenance and branch‑protection recommendations are included. This manual is written in Chinese.

What's inside

Safety Information
Device Overview
Model Description
Installation Steps
Technical Data
Wiring Diagram
Recommended Circuit Examples
Control Terminals and Switches
Optional Card Installation
Conversion ATV21 → ATV212

Specifications

Power rating range	0.75 kW to 75 kW
Input voltage (M3X)	200‑240 V three‑phase
Input voltage (N4)	380‑480 V three‑phase

Frequently asked questions

Which voltage ranges are supported by the ATV212?

The ATV212 supports 200‑240 V three‑phase for the M3X version and 380‑480 V three‑phase for the N4 version.

Download PDF (8.5 MB)
