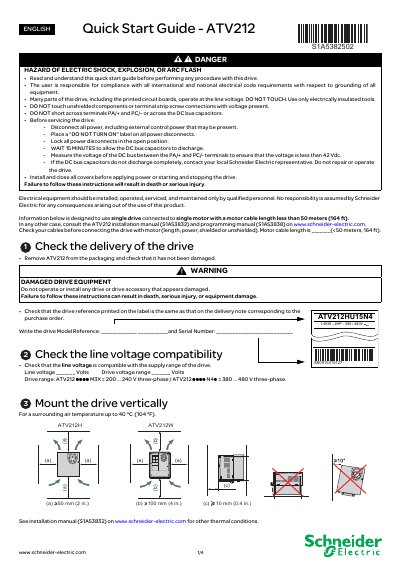

This file is the quick start guide for Schneider Electric's ATV212 variable frequency drive.
This Quick Start Guide provides essential instructions for installing and commissioning the Schneider Electric ATV212 inverter. It emphasizes safety warnings, required qualifications, and checks such as cable length (under 50 m) and line‑voltage compatibility before power‑up.
The guide walks the user through delivery inspection, wiring of power and control connections, setting motor parameters from the nameplate, and basic menu navigation for control mode selection and auto‑tuning. It also outlines safety steps to follow before servicing, including power isolation and capacitor discharge.
| Drive voltage range (M3X) | 200 … 240 V three‑phase |
|---|---|
| Drive voltage range (N4p) | 380 … 480 V three‑phase |
| Maximum motor cable length for quick start | < 50 m (164 ft) |
| Power rating (example model) | 1.5 kW (2 HP) 380/480 V |
The guide is intended for motor cable lengths less than 50 meters (164 feet).
It supports 200‑240 V three‑phase (M3X) and 380‑480 V three‑phase (N4p).
