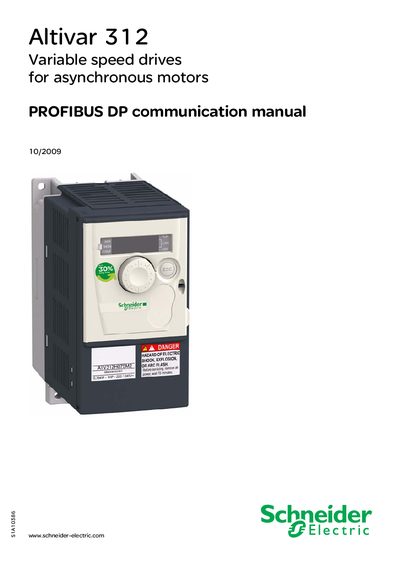

This document describes Schneider Electric's Altivar 312 variable speed drives for asynchronous motors. The document includes information about hardware setup, configuration, diagnostics, PROFIBUS DP mapping, and integration in a PROFIBUS DP network.
This manual covers safety warnings, installation steps, and configuration procedures for the Altivar 312 variable‑speed drive with a PROFIBUS DP communication card. It explains how to install the card, connect the bus, and set up parameters for integration with Modicon and Siemens controllers.
Detailed sections describe hardware setup, PROFIBUS DP mapping, diagnostics, and supervision in LINE mode, helping qualified personnel safely commission and maintain the drive in industrial applications.
