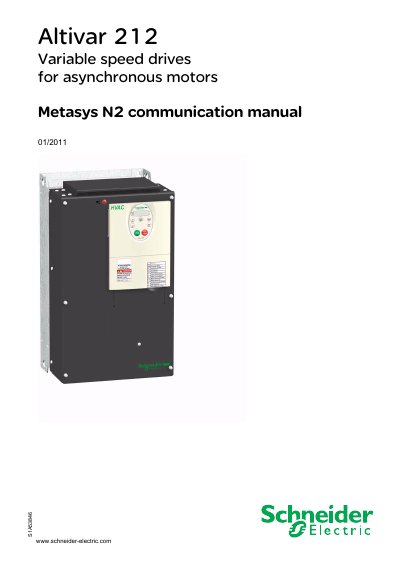

This document describes the features and characteristics of Schneider Electric Altivar 212 variable speed drives for asynchronous motors, and provides the Metasys N2 communication manual.
This manual provides safety information, hardware description, and step‑by‑step instructions for configuring the Altivar 212 variable‑speed drive to communicate via Metasys N2 fieldbus. It includes wiring practices, terminal descriptions, and parameter settings required for proper operation.
The document also covers diagnostics, LED indicator meanings, and fault‑handling procedures, helping qualified personnel install, maintain, and troubleshoot the drive safely and efficiently.
| Reference potentiometer voltage | 10 Vdc |
|---|---|
| Reference potentiometer max current | 10 mA |
| Analog input internal impedance | 30 kΩ |
| Power supply output voltage | 24 Vdc |
| Relay contact output voltage | 30 Vdc, 0.5 A |
