Key facts
- Brand
- Yamaha
- Model
- RX-V565
- Category
- Player
- Industry
- Industrial
- Documents
- 3
- Languages
- EN
- Last added
- 2026-10-16
Start here

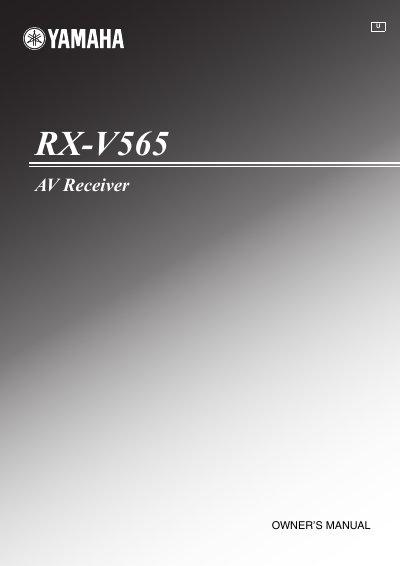

Yamaha RX-V565 AV Receiver Owner's Manual
This document serves as the official owner's manual for the Yamaha RX-V565 AV Receiver. It contains essential safety warnings regarding electrical shock and fire hazards, along with specific installation requirements such as ventilation spacing and voltage settings.
The guide covers setup procedures including connecting power and audio/video sources, as well as operational instructions for using the receiver's features. It also includes troubleshooting advice to help users identify common operating errors before concluding that a unit is faulty.
Yamaha RX-V565 specifications
| Amplifier Channels | 7‑channel |
|---|---|
| Front L/R RMS Output Power | 90 W |
| Center RMS Output Power | 90 W |
| Surround L/R RMS Output Power | 90 W |
| Surround Back L/R RMS Output Power | 90 W |
| HDMI Inputs | 4 |
| Digital Audio Inputs (Coaxial) | 2 |
| Digital Audio Inputs (Optical) | 2 |
| Analog Audio Inputs | 2 |
| Video Outputs (Component) | 1 |
Source: YAMAHA RX-V565 Manual
All Yamaha RX-V565 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What ventilation clearance is required around the Yamaha RX-V565?
You must allow at least 30 cm of space on top and 20 cm on the left, right, and back.
What voltage options are available for the Yamaha RX-V565?
The General model supports AC 110/120/220/230–240 V, while the Asia model supports AC 220/230–240 V.
What ventilation space is required around the unit?
You must allow at least 30cm on the top, 20 cm on the left and right, and 20cm on the back of this unit.
What voltage settings are available for the unit?
The unit supports AC 110/120/220/230-240 V, 50/60 Hz for General models and AC 220/230-240 V, 50/60 Hz for Asia models.
How many HDMI inputs does the RX‑V365 have?
The receiver provides four HDMI inputs.
From: YAMAHA RX-V565 Manual
What is the minimum RMS output power for each front speaker channel?
Each front left/right channel delivers 90 W RMS.
From: YAMAHA RX-V565 Manual
