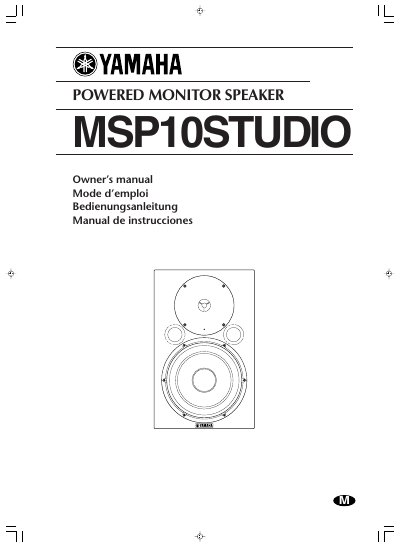

This document is the owner's manual for MSP10STUDIO, which details the product's functions and usage methods.
The Yamaha MSP10STUDIO is a compact bass reflex cabinet featuring a 20 cm two-way cone speaker and a 2.5 cm titanium dome speaker. This bi-amplifier system faithfully reproduces sound for applications ranging from personal home recordings to serious professional use.
Before operation, users must adhere to safety precautions regarding installation, power connection, and ventilation. The manual details the front panel controls, including TRIM switches for bass and treble adjustment, a LOW CUT switch, and SENSITIVITY control. It also covers wall mounting using an optional bracket.
| Frequency Range | 40 Hz to 40 kHz (-10 dB) |
|---|---|
| Maximum Output Level | 110 dB (1 mon Axis) |
| Dimensions | 265 x 420 x 329 mm |
| Weight | 20 kg |
| Speaker Unit LF | 20 cm Cone (4Q, magnetic shielded) |
| Speaker Unit HF | 2.5 cm Titan Dome (8Q, magnetic shielded) |
| Input Sensitivity/Impedance | -6 dB to +4 dB/10 kΩ |
| Power Requirement (USA and Canada) | AC 120V, 60 Hz |
The maximum output level is 110 dB for one monitor on axis.
You must allow at least 10 cm of space on the sides, 30 cm behind, and 60 cm above the unit.
The maximum output level is 110 dB for one monitor on axis.
The unit requires AC 230V at 50 Hz when used in Europe.
