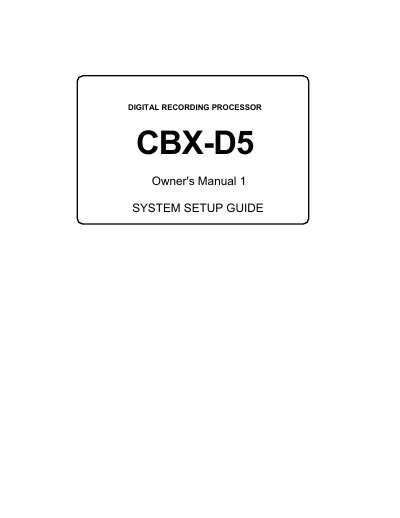

Yamaha CBX-D5 Digital Recording Processor System Setup Guide

About this manual

This document serves as a System Setup Guide for the Yamaha CBX-D5 Digital Recording Processor. It provides specific instructions for connecting the device to three different computer environments: the Atari ST/STE system using Cubase Audio, the Atari TT system using Cubase Audio, and the Apple Macintosh system using Digital Performer.

What's inside

• Introduction
• Cubase Audio & Atari ST/STE System
• Cubase Audio & Atari TT System
• Digital Performer & Apple Macintosh System
• Making the connections
• Settings
• Switching on the power

Frequently asked questions

What computer systems are supported by this setup guide?

This guide covers setups for the Atari ST/STE, Atari TT, and Apple Macintosh computers.

What software is required for the Atari ST/STE system?

The system requires Steinberg's Cubase Audio software in the Atari version.

What SCSI ID should be set on the CBX-D5 for the Atari TT system?

The CBX-D5 must be set to SCSI ID 5 or 6 using the thumb wheel switch.

What SCSI ID should be set on the hard disk for the Apple Macintosh system?

The hard disk must be set to SCSI ID 2 according to the settings instructions.
