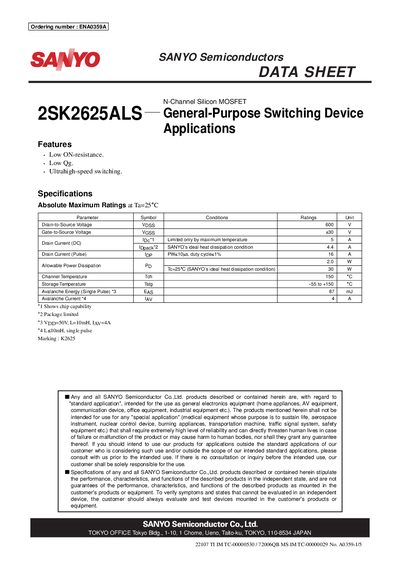

SANYO 2SK2625ALS N-Channel MOSFET Datasheet
The SANYO 2SK2625ALS is a general‑purpose N‑channel silicon MOSFET designed for low ON‑resistance, low gate charge and ultrahigh‑speed switching. The datasheet provides absolute maximum ratings, typical electrical parameters and package dimensions for designers.
Key specifications include a 600 V drain‑to‑source rating, 44 A continuous drain current under ideal heat‑dissipation conditions, and a typical on‑state resistance of about 2 mΩ. The document also lists switching times, avalanche energy and recommended usage precautions.
Sanyo 2SK2625ALS specifications
| Drain-to-Source Voltage (VDS) | 600 V |
|---|---|
| Gate-to-Source Voltage (VGS) | +30 V |
| Continuous Drain Current (ID, DC) | 4 A |
| Pulse Drain Current (ID, Pulse) | 16 A |
| Input Capacitance (Ciss) | 700 pF |
| Output Capacitance (Coss) | 220 pF |
| Reverse Transfer Capacitance (Crss) | 110 pF |
| Total Gate Charge (Qg) | 20 nC |
Source: SANYO 2SK2625ALS handbook(1)(1)
All Sanyo 2SK2625ALS documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain-to-source voltage for the 2SK2625ALS?
The device is rated for a maximum drain‑to‑source voltage of 600 V.
Are there any usage precautions for this MOSFET?
Yes, the datasheet advises avoiding use of the device near highly charged objects.
