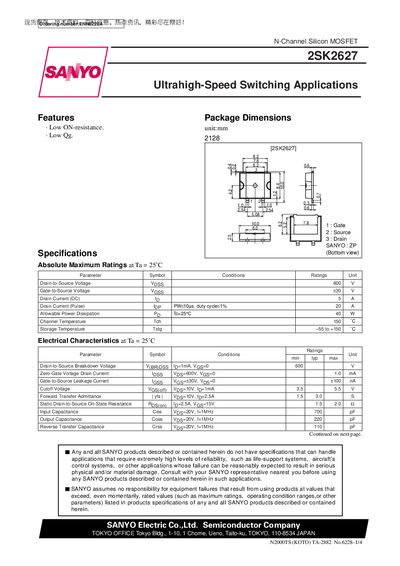

SANYO 2SK2627 N-Channel MOSFET Datasheet
The 2SK2627 is an N‑Channel silicon MOSFET designed for ultrahigh‑speed switching applications. It offers low ON‑resistance and fast switching times, making it suitable for power conversion and switching circuits.
The document lists absolute maximum ratings, detailed electrical characteristics, and typical performance parameters such as drain‑to‑source voltage, gate‑to‑source voltage, drain current, on‑resistance, and capacitances. Safety notices advise against use in life‑support or aircraft control systems and recommend protective circuit design.
Sanyo 2SK2627 specifications
| Drain-to-Source Voltage (V_DSS) | 600 V |
|---|---|
| Gate-to-Source Voltage (V_GS) | +30 V |
| Drain Current (DC) | 5 A |
| Drain Current (Pulse) | 20 A |
All Sanyo 2SK2627 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain-to-source voltage for the 2SK2627?
The maximum drain-to-source voltage is 600 V.
Can the 2SK2627 be used in life‑support or aircraft control systems?
No, SANYO states the device is not guaranteed for such high‑reliability applications.
What is the maximum drain‑to‑source voltage for the 2SK2627?
The maximum drain‑to‑source voltage is 600 V.
What continuous drain current can the 2SK2627 handle at 25 °C?
It can handle a continuous drain current of 5 A at 25 °C.
