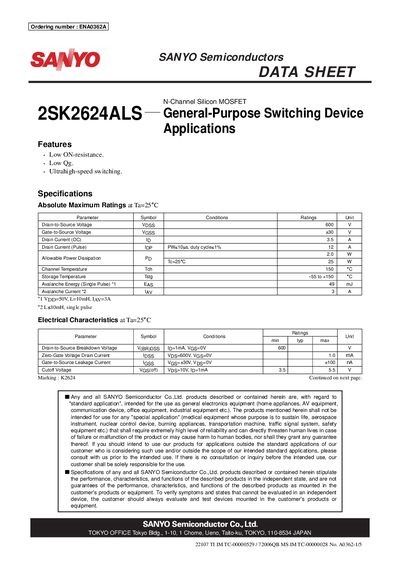

SANYO 2SK2624ALS N-Channel MOSFET Datasheet
The SANYO 2SK2624ALS is a general‑purpose N‑channel silicon MOSFET intended for low‑ON‑resistance, low gate charge and ultrahigh‑speed switching applications. The datasheet provides absolute maximum ratings, typical electrical parameters and package dimensions for design reference.
Key specifications include a 600 V drain‑to‑source breakdown voltage, +30 V gate‑to‑source rating, 3.5 A continuous drain current, and a 25 W power dissipation capability at 25 °C ambient temperature. Package information for the TO‑220F (LS) case is also listed.
Sanyo 2SK2624ALS specifications
| Drain‑to‑Source Voltage (V_DSS) | 600 V |
|---|---|
| Gate‑to‑Source Voltage (V_GSS) | +30 V |
| Continuous Drain Current (I_D) | 3.5 A |
| Power Dissipation (P_D) | 25 W @ 25 °C |
| Input Capacitance (C_iss) | 550 pF |
| Total Gate Charge (Q_g) | 15 nC |
