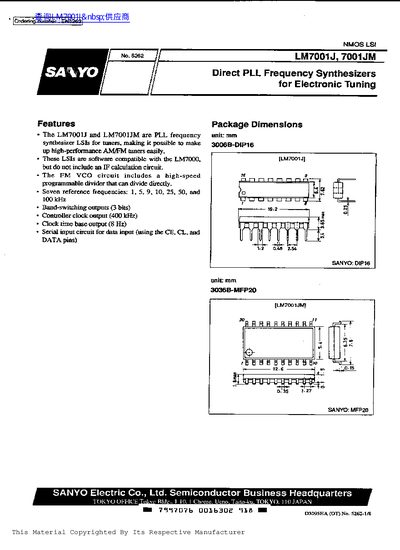

SANYO LM7001J/LM7001JM Direct PLL Frequency Synthesizer Datasheet
The SANYO LM7001J and LM7001JM are Direct PLL Frequency Synthesizer LSIs designed to simplify the creation of high-performance AM/FM tuners. These devices are software compatible with the LM7000 series but exclude the IF calculation circuit. They feature a high-speed programmable divider within the FM VCO circuit and support seven reference frequencies ranging from 1 kHz to 100 kHz.
Read onlineSanyo LM7001J specifications
| Operating temperature | -40 to +85 C |
|---|---|
| Band-switching outputs | 3 bits |
| Controller clock output frequency | 400 kHz |
Source: SANYO LM7001J/LM7001JM Direct PLL Frequency Synthesizer Datasheet
All Sanyo LM7001J documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Are the LM7001J and LM7001JM compatible with the LM7000?
Yes, these LSIs are software compatible with the LM7000, but they do not include an IF calculation circuit.
From: SANYO LM7001J/LM7001JM Direct PLL Frequency Synthesizer Datasheet
What is the allowable power dissipation for the LM7001J?
The allowable power dissipation for the LM7001J (DIP 16) at Ta = 85°C is 300 mW.
From: SANYO LM7001J/LM7001JM Direct PLL Frequency Synthesizer Datasheet
