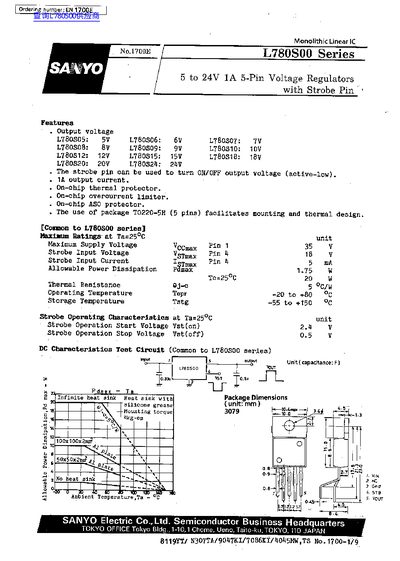

Sanyo L780S00 Series Datasheet
The L780S00 Series includes 5‑pin linear voltage regulators with selectable output voltages from 5 V to 24 V and a strobe pin for output enable/disable. The devices are packaged in a TO‑220‑5H case for easy mounting and thermal management.
The datasheet lists maximum ratings, recommended operating conditions, and detailed electrical characteristics such as dropout voltage, line and load regulation, and thermal resistance. It also includes a disclaimer on intended use and liability.
Sanyo L780S00 specifications
| Maximum Supply Voltage | 35 V |
|---|---|
| Output Current | 1 A |
| Strobe Input Voltage | 18 V |
| Dropout Voltage (1 A load) | 2.0 V |
Source: Sanyo L780S00 Series Datasheet
