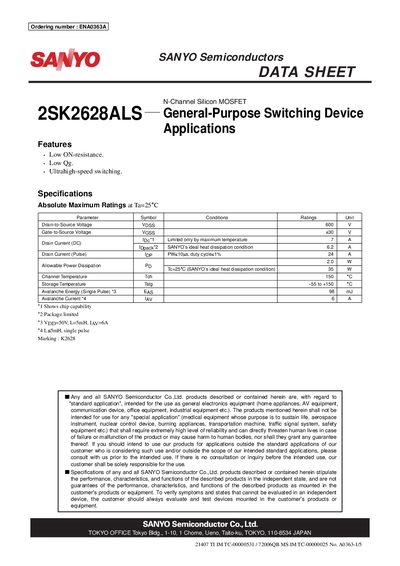

SANYO 2SK2628ALS N-Channel MOSFET Datasheet
Datasheet 5 pages · 66 KB · EN
The SANYO 2SK2628ALS is a general‑purpose N‑channel silicon MOSFET designed for low ON‑resistance and ultrahigh‑speed switching. The datasheet provides absolute maximum ratings, typical electrical characteristics, and package dimensions for designers.
Key sections cover features, absolute maximum ratings, detailed electrical parameters such as drain current and gate charge, as well as notes on safe usage and export control considerations.
Sanyo 2SK2628ALS specifications
| Drain-to-Source Voltage (V_DSS) | 600 V |
|---|---|
| Gate-to-Source Voltage (V_GSS) | +30 V |
| Continuous Drain Current (I_D) | 6.2 A |
| Pulse Drain Current (I_D, pulse) | 24 A |
| On‑State Resistance (R_DS(on)) | 0.9 mΩ |
| Total Gate Charge (Q_g) | 30 nC |
| Storage Temperature Range | -55 °C to +150 °C |
All Sanyo 2SK2628ALS documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑to‑source voltage for the 2SK2628ALS?
The maximum drain‑to‑source voltage is 600 V.
What is the recommended storage temperature range?
The device can be stored from –55 °C up to +150 °C.
What is the maximum drain‑to‑source voltage for the 2SK2628ALS?
The device can withstand up to 600 V between drain and source.
What gate‑to‑source voltage is allowed?
The maximum gate‑to‑source voltage is +30 V.
