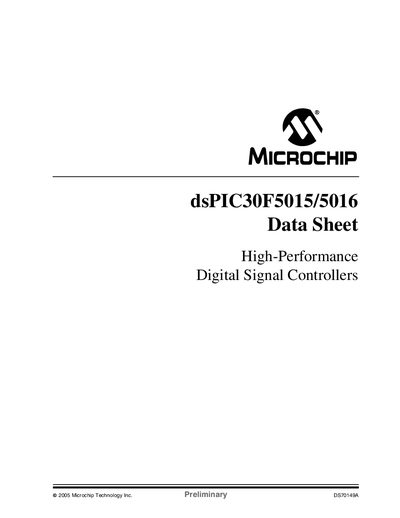

This document is a preliminary datasheet of dsPIC30F5015/5016 High-Performance Digital Signal Controllers released by Microchip Technology Inc. in 2005. The datasheet describes the high performance and digital signal processing capabilities of the product.
The dsPIC30F5015/5016 is a 16-bit digital signal controller featuring a high‑performance modified RISC CPU, up to 30 MIPS operation, and a wide operating voltage range of 2.5 V to 5.5 V. It includes 66 KB of on‑chip Flash program memory, 2 KB of data RAM, and 1 KB of non‑volatile EEPROM.
Key peripherals include a 10‑bit ADC with 16 channels and 1 Msps conversion rate, multiple timer modules, PWM outputs, SPI, I²C, UART, CAN, and a quadrature encoder interface, making the device suitable for motor control and power‑conversion applications.
| Flash program memory | 66 Kbytes |
|---|---|
| Data RAM | 2 Kbytes |
| EEPROM | 1 Kbytes |
| I/O pin current capability | 25 mA sink/source per pin |
| Operating voltage range | 2.5 V to 5.5 V |
| Maximum performance | Up to 30 MIPS |
The device provides 66 KB of on‑chip Flash program space.
Each I/O pin can source or sink up to 25 mA.
It operates from 2.5 V to 5.5 V.
