MICROCHIP dsPIC30F3014 dsPIC30F4013 Data Sheet

This datasheet provides detailed information on the dsPIC30F3014, dsPIC30F4013 devices.

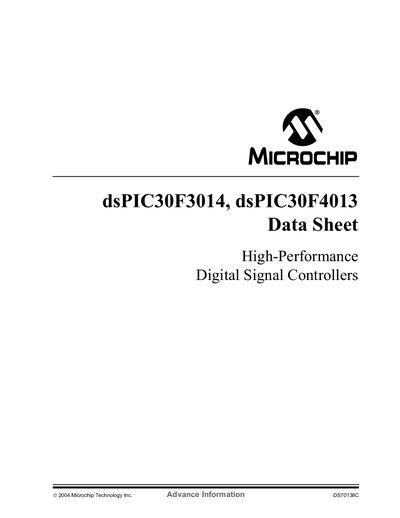

MICROCHIP dsPIC30F3014 dsPIC30F4013 Data Sheet - cover page
Brand
MICROCHIP
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
220
File format
PDF
File size
5.2 MB
Published
06 April, 2012
Updated
30 September, 2023
MD5 checksum
BD1D26775D20D91BC7452A95DD6A6DE8

About this manual

The dsPIC30F3014 and dsPIC30F4013 are high‑performance 16‑bit digital signal controllers featuring a modified Harvard architecture, up to 30 MIPS, and a wide range of peripherals such as UARTs, SPI, I²C, CAN, and multiple timers. They are built on low‑power CMOS flash technology and operate from 2.5 V to 5.5 V with industrial temperature ratings.

The datasheet details electrical specifications, peripheral capabilities, pin‑out diagrams for PDIP, TQFP and QFN packages, code‑protection features, and product identification codes. It also includes worldwide sales and service contacts for Microchip.

What's inside

  • Features
  • Peripheral Features
  • Analog Features
  • Special Microcontroller Features
  • Pin Diagrams
  • Product Identification System
  • Worldwide Sales and Service

Specifications

Flash program memoryUp to 48 Kbytes
Data RAM2 Kbytes
EEPROM1 Kbyte
ADC resolution12‑bit
Maximum MIPS30 MIPS
External clock input rangeDC to 40 MHz
Conversion rate100 Ksps
Number of timers/countersUp to five 16‑bit
UART modulesTwo addressable with FIFO
Current per I/O pin25 mA source / 25 mA sink

Frequently asked questions

What code‑protection features are provided?

The device includes programmable code protection, though Microchip does not guarantee it is unbreakable.

What is the operating temperature range?

Industrial range is –40 °C to +85 °C, with an extended range up to +125 °C.

How many analog input channels are available?

The controller provides up to 13 input channels for the 12‑bit ADC.
