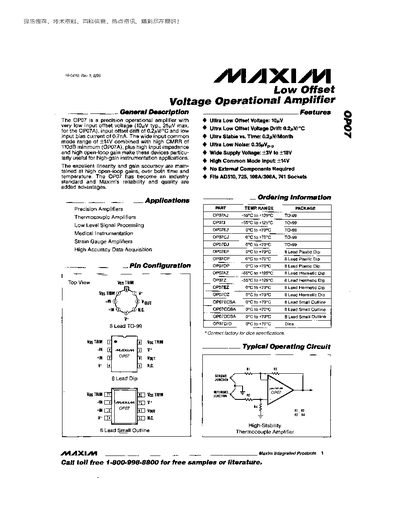

Maxim OP07 Operational Amplifier Datasheet
The OP07 is a precision low‑offset voltage operational amplifier with typical input offset of 10 µV and drift of 0.2 µV/°C. It offers a wide supply range, high common‑mode input range, and excellent linearity, making it suitable for high‑gain instrumentation and medical applications.
The document lists absolute maximum ratings, detailed electrical characteristics such as slew rate, bandwidth, and CMRR, as well as mechanical dimensions for various package types (TO‑99, plastic DIP, small‑outline, hermetic). Ordering information and recommended applications are also included.
Maxim OP07 specifications
| Input Offset Voltage (typ) | 10 µV |
|---|---|
| Input Offset Voltage Drift | 0.2 µV/°C |
| Input Bias Current | 0.7 nA |
| Supply Voltage Range | +3 V to +18 V |
| CMRR (minimum) | 110 dB |
All Maxim OP07 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical input offset voltage of the OP07?
The typical input offset voltage is 10 µV.
What is the input offset voltage drift of the OP07?
The offset voltage drift is 0.2 µV/°C.
What is the typical input offset voltage of the OP07?
The OP07 has a typical input offset voltage of 10 µV.
What supply voltage range does the OP07 support?
The OP07 operates from +3 V to +18 V supply voltage.
