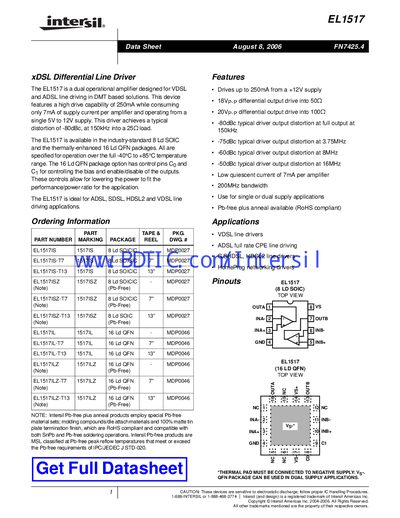

The EL1517 is a dual operational amplifier designed for VDSL and ADSL line driving in DMT based solutions. This device features a high drive capability of 250mA while consuming only 7mA of supply current per amplifier and operating from a single 5V to 12V supply. This driver achieves a typical distortion of -80dBc, at 150kHz into a 25Ω load. The EL1517 is available in the industry-standard 8 Ld SOIC and the thermally-enhanced 16 Ld QFN packages. All are specified for operation over the full -40°C to +85°C temperature range. The 16 Ld QFN package option has control pins C0 and C1 for controlling the bias and enable/disable of the outputs. These controls allow for lowering the power to fit the performance/power ratio for the application. The EL1517 is ideal for ADSL, SDSL, HDSL2 and VDSL line driving applications.
The EL1517 is a dual operational amplifier designed for VDSL and ADSL line driving in DMT‑based solutions. It offers a high drive capability of 250 mA, low quiescent current of 7 mA per amplifier, and a typical distortion of –80 dBc at 150 kHz.
The device is supplied in 8‑lead SOIC and 16‑lead QFN packages, operates from a single 5 V to 12 V supply, and is rated for –40 °C to +85 °C. Ordering information, pinouts, and RoHS‑compliant Pb‑free options are included in the sheet.
| Drive capability | 250 mA |
|---|---|
| Supply voltage | 5 V to 12 V (single supply) |
| Quiescent current | 7 mA per amplifier |
| Typical distortion (150 kHz) | –80 dBc |
| Bandwidth | 200 MHz |
| Operating temperature range | –40 °C to +85 °C |
| Differential output drive (50 Ω load) | 18 Vp‑p |
| Package types | 8‑lead SOIC, 16‑lead QFN |
The EL1517 can drive up to 250 mA.
It operates from a single 5 V to 12 V supply.
Typical distortion is –80 dBc at 150 kHz.
The device is offered in 8‑lead SOIC and 16‑lead QFN packages.
