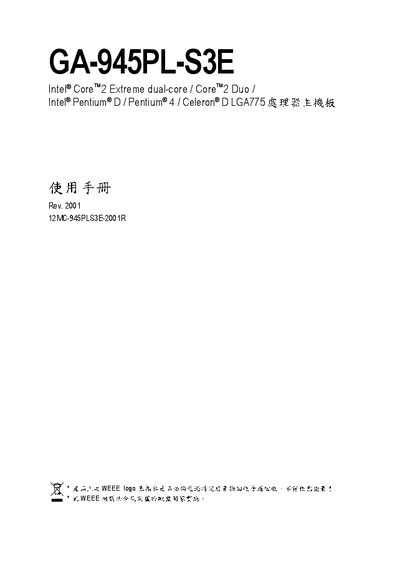

The GA-945PL-S3E is a motherboard from Gigabyte that supports Intel Core TM 2 Extreme dual-core / Core TM 2 Duo / Intel Pentium® D / Pentium® 4 / Celeron® D LGA775 processors
This manual covers the GA-945PL-S3E motherboard, detailing its hardware layout, supported processors, memory types, and peripheral connections. It includes sections on installing the CPU, memory modules, and expansion cards, as well as configuring BIOS settings and troubleshooting common issues.
Additional information includes regulatory compliance declarations, accessory part numbers, and environmental safety data such as RoHS substance tables. Links to Gigabyte’s support website are provided for further technical resources. This manual is written in Chinese.
| CPU Socket | LGA775 |
|---|---|
| Chipset | Intel 945PL |
| Supported Memory | DDRII DIMM 533/400 MHz |
| SATA Interface | SATA 3 Gb/s |
| USB Ports | 2‑port USB 2.0 and 4‑port USB 2.0 expansion boards |
| LAN Controller | Realtek RTL8111B |
It uses an LGA775 socket for compatible Intel processors.
The board supports DDRII DIMM modules running at 533 MHz or 400 MHz.
The motherboard includes a 2‑port USB 2.0 expansion board and a 4‑port USB 2.0 expansion board.
An RTL8111B Realtek Ethernet controller is built in.
