A modular video switcher/control system for security applications supporting up to 64 camera inputs and 8 monitor outputs with PC-based software.

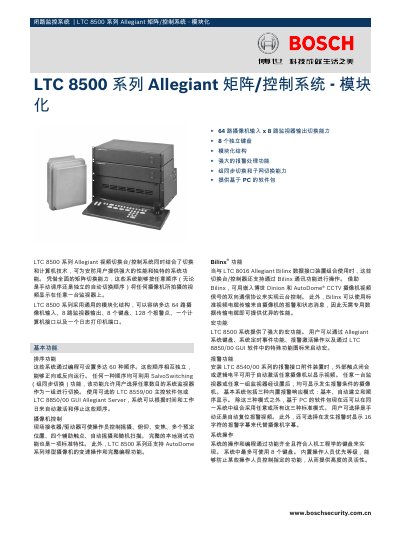

The Bosch Security Systems LTC 8500 Series Allegiant Matrix/Control System is a modular design that combines switching and computer technology. It provides powerful performance and unique system functions for security users, allowing any video from up to 64 cameras to be displayed on any of the 8 monitors in any order. This manual is written in Chinese.
| Video Inputs (Standard) | 64 channels |
|---|---|
| Monitor Outputs | 8 channels |
| Alarm Points | 128 points |
| Video Bandwidth (-3 dB) | 8 MHz (typical) |
| Signal-to-Noise Ratio | Minimum 60 dB |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Maximum Altitude | 3000 meters (10,000 feet) |
Yes, it provides a PC-based software package for enhanced programming and switching functions.
The typical video bandwidth (-3 dB) is 8 MHz.
