The LTC 0335 series is a digital black and white CCD camera with a 1/3-inch image format. It has excellent sensitivity and clarity, and can perform at its best in any situation. It features easy installation, digital signal processing, on-screen display menu, superior image quality, and exceptional reliability, making it the best choice for both beginners and professional users.

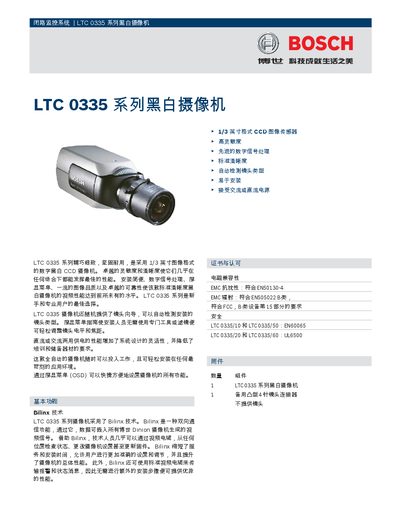

This manual describes the features and basic functions of the Bosch LTC 0335 series black‑and‑white camcorder, including its high‑sensitivity 1/3‑inch CCD sensor, digital signal processing, and OSD control. It also outlines safety certifications and EMC compliance.
Installation, power‑supply options, hardware accessories, and detailed technical specifications such as resolution, dimensions, weight, and operating temperature are covered, helping users set up and operate the camcorder safely and efficiently. This manual is written in Japanese.
| Sensor format | 1/3 inch CCD |
|---|---|
| Resolution | 512 x 582 |
| Power supply (DC) | 12VDC 10.8‑39VDC |
| Power supply (AC) | 24VAC 12‑28VAC |
| Weight | 0.45 kg |
| Operating temperature | -20°C to 50°C |
| EMC compliance | EN50130-4 |
| Safety standards | EN60065, UL6500 |
It can be powered by 12 VDC (10.8‑39 VDC) or 24 VAC (12‑28 VAC), with options for 50 Hz or 60 Hz operation.
Models /10 and /50 meet EN60065, while models /20 and /60 meet UL6500.
