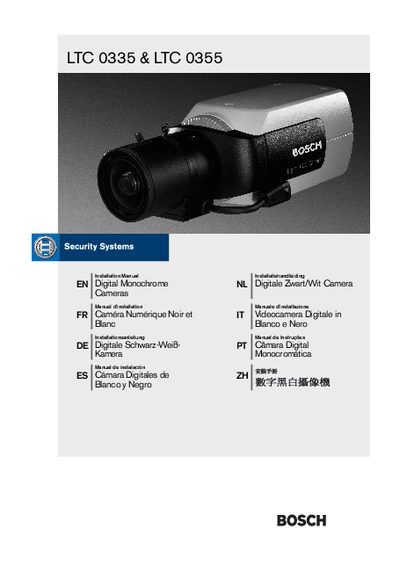

LTC 0335 & LTC 0355 Installation Manual, contains product introduction, safety precautions, installation steps and other content
This Installation Manual provides safety precautions, unpacking instructions, and wiring guidelines for the Bosch LTC 0335 and LTC 0355 security cameras. It emphasizes proper handling, power‑supply protection, and the need for qualified service personnel.
The document also lists technical specifications such as sensor resolution, illumination requirements, power supply ranges, and physical dimensions, and it details lens‑adjustment procedures for various iris types.
| Active pixels (HxV) | 512×582, 512×492, 752×582, 768×494 |
|---|---|
| Resolution | 380 TVL (standard), 570 TVL (high) |
| Minimum illumination | <0.12 lux (standard), <0.09 lux (high) |
| Signal‑to‑noise ratio | > 50 dB |
| Video output | 1 Vpp, 750 |
| Power supply | 12‑28 VAC or 11‑36 VDC (LTC 08x5/10 & /20); 85‑265 VAC (LTC 03x5/50 & /60) |
| Dimensions (HxWxL) | 58 × 66 × 122 mm (2.28 × 2.6 × 4.8 in) without lens |
| Weight | 450 g (0.99 lb) without lens |
| Operating temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
The LTC 0335 models accept 12‑28 VAC or 11‑36 VDC, while the LTC 0355 models accept 85‑265 VAC.
