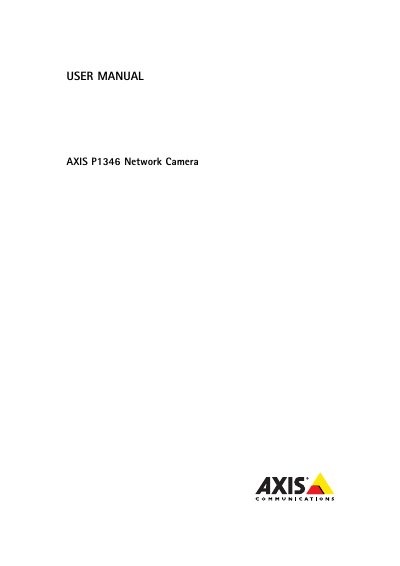

This is the user manual of AXIS P1346 Network Camera, which includes instructions on how to use and manage the product on your network.
The Axis P1346 Network Camera User Manual provides detailed instructions for installing, configuring, and maintaining the camera. It includes hardware overviews, connector descriptions, LED indicator functions, lens replacement steps, and guidance on accessing the device via web browsers.
Technical specifications such as processor, memory, power options, dimensions, and environmental ratings are listed, along with information on supported network protocols, audio/video outputs, and optional accessories. Safety, regulatory compliance, and troubleshooting sections help ensure reliable operation.
| Processor and Memory | 256 MB RAM, 128 MB Flash |
|---|---|
| Power Supply | 8‑20 V DC or Power over Ethernet (PoE) IEEE 802.3af, max 9.6 W |
| Dimensions | 46 × 78 × 207 mm (1.8 × 3.1 × 8.2 in) |
| Weight | 0.6 kg (1.3 lb) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 20 %–80 % RH (non‑condensing) |
Press and hold the control button for about 3 seconds until the Status LED flashes green, then follow the reset procedure described on page 50.
Yes, the camera supports PoE according to IEEE 802.3af, providing up to 9.6 W of power.
A 3.5 mm mono microphone or line‑in input is provided on the pink jack.
