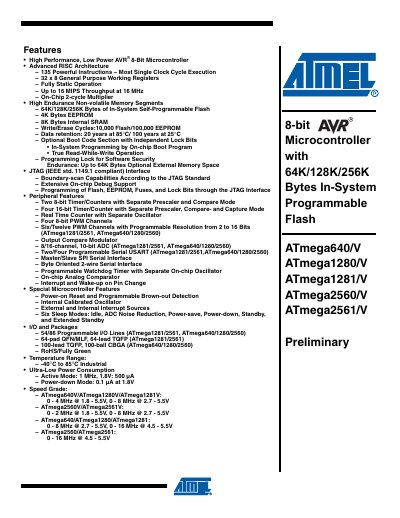

ATMEL -8-bit Microcontroller with 64K/128K/256K Bytes In-System Programmable Flash ATmega640/V ATmega1280/V ATmega1281/V ATmega2560/V ATmega2561/V handbook
The ATmega640/1280/1281/2560/2561 family are low‑power CMOS 8‑bit microcontrollers based on the AVR enhanced RISC architecture. They deliver up to 1 MIPS per MHz and support a wide range of peripherals, making them suitable for many embedded control applications.
Key features include up to 256 KB of flash memory, multiple timer/counter units, up to 16‑channel 10‑bit ADC, several USARTs, SPI, I²C, JTAG debug interface, and extensive low‑power modes. The datasheet details pin‑outs for QFN, TQFP and CBGA packages, electrical characteristics, and ordering information.
Atmel ATMEGA2560 specifications
| Flash memory | 64 KB / 128 KB / 256 KB |
|---|---|
| EEPROM | 4 KB |
| SRAM | 8 KB |
| Programmable I/O lines | 54 / 86 |
| ADC | 10‑bit, up to 16 channels |
| Timer/Counters | Four 16‑bit timers, two 8‑bit timers |
| USARTs | Two or four programmable serial USARTs |
| Operating temperature range | -40 °C to 85 °C (Industrial) |
| Active mode current (1 MHz, 1.8 V) | 500 pA |
| Power‑down mode current (1.8 V) | 0.1 pA |
All Atmel ATMEGA2560 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What flash memory size does the ATmega2560 have?
The ATmega2560 provides 256 KB of In‑System Self‑Programmable Flash.
How many programmable I/O pins are available on the ATmega1280?
The ATmega1280 offers 86 programmable I/O lines.
How many programmable I/O pins does the ATmega640 have?
The ATmega640 offers 86 programmable I/O lines.
From: ATMEL Atmel AVR micro controller ATmega2560 handbook (1)
What is the power‑down current consumption of these devices?
In Power‑down mode the device draws only 0.1 pA at 1.8 V.
From: ATMEL Atmel AVR micro controller ATmega2560 handbook (1)
What is the flash memory size of the ATmega2560?
The ATmega2560 provides 256 KB of In‑System Self‑Programmable Flash memory.
How many general‑purpose I/O pins does the ATmega2560 have?
The device offers 86 programmable I/O lines in the 100‑pin package.
