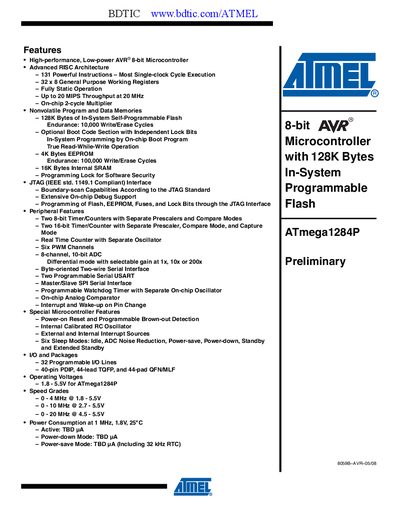

Atmel ATmega1284P Microcontroller Preliminary Manual
This manual describes the ATmega1284P 8‑bit AVR microcontroller, highlighting its high‑performance, low‑power architecture, on‑chip peripherals, and memory resources. It includes a block diagram, pin‑out tables, and detailed descriptions of ports, timers, ADC, UARTs, SPI, and power‑saving modes.
The document also offers code examples, development‑tool references, and information on programming interfaces such as JTAG, ISP, and bootloader support. Contact and support details for Atmel worldwide offices are provided at the end.
Atmel ATMEGA1284P specifications
| Flash Memory | 128 KB |
|---|---|
| EEPROM | 4 KB |
| SRAM | 16 KB |
| Programmable I/O Lines | 32 |
| Operating Voltage | 1.8 V – 5.5 V |
| Speed Grades | 0‑4 MHz @1.8‑5.5 V, 0‑10 MHz @2.7‑5.5 V, 0‑20 MHz @4.5‑5.5 V |
| ADC | 8‑channel, 10‑bit |
| PWM Channels | 6 |
Source: Atmel ATmega1284P Microcontroller Preliminary Manual
