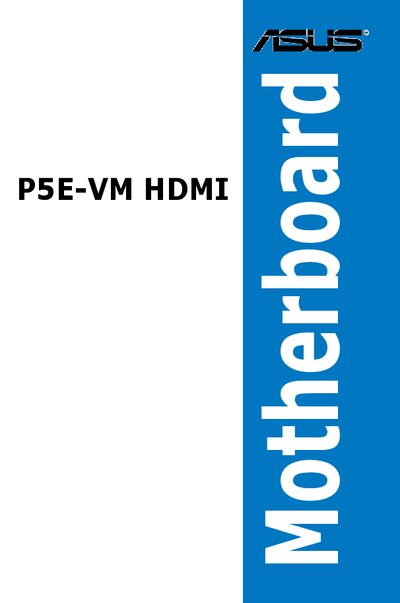

This document introduces the features and characteristics of the ASUS P5E-VM HDMI ii E3338 motherboard
This manual introduces the ASUS P5E-VM HDMI motherboard, covering package contents, special features, hardware layout, memory configurations, expansion slots, and rear panel connectors. It also includes safety guidelines for electrical and operational hazards, as well as step‑by‑step instructions for powering up the system for the first time.
Further sections detail BIOS configuration, including menu navigation, CPU and memory settings, and advanced options such as ACPI and USB configuration. Software support topics cover driver installation, utilities, and RAID setup, while the appendix provides information on supported CPUs and Hyper‑Threading technology.
| Supported CPU | Intel Pentium 4 LGA775 processors with Hyper‑Threading Technology |
|---|---|
| Hyper‑Threading support | Enabled via BIOS for supported operating systems |
| SATA / PATA ports | SATA 1‑6; PATA Primary Master/Slave |
| ACPI version | ACPI 2.0 (configurable in BIOS) |
Warranty is void if the product is repaired, modified, or altered without written permission from ASUS, or if the serial number is defaced or missing.
Install an Intel Pentium 4 CPU that supports Hyper‑Threading, enter the BIOS Setup, set the Hyper‑Threading item to Enabled, and restart the computer.
