Key facts
- Brand
- ASUS
- Model
- P4T-M
- Industry
- Industrial
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

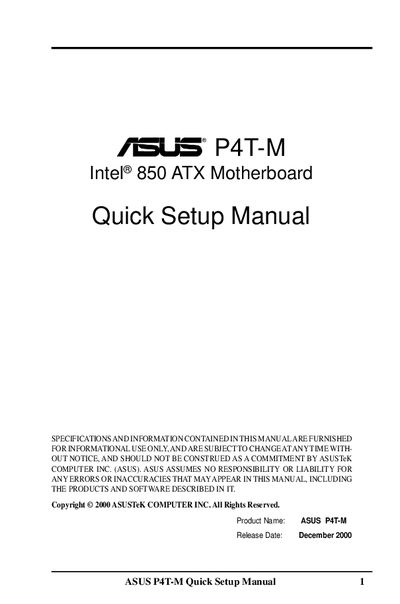

ASUS P4T-M Quick Setup Manual
Quick Start Guide 19 pages · 501 KB · EN
This Quick Setup Manual walks you through the hardware installation of the ASUS P4T-M Intel® 850 ATX motherboard. It covers the required power supply, memory module installation, CPU mounting, and connector wiring, with safety warnings for static electricity.
Key sections include Features, Hardware Setup (Getting Started, System Memory, CPU), Power Supply Connectors, and System Panel Connectors, each with diagrams and detailed instructions to help you assemble a functional system.
ASUS P4T-M specifications
| CPU Socket | Intel Socket 423 |
|---|---|
| Chipset | Intel 82850 (Tehama) MCH |
| Front Side Bus | 400 MHz |
| AGP Slot | AGP 4X |
| PCI Version | PCI 2.2 |
| USB Ports | 4 ports |
| Ethernet Controller | Intel 82558 |
All ASUS P4T-M documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Quick Start Guide 1
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What CPU socket does the ASUS P4T-M motherboard support?
It supports the Intel Socket 423 for Pentium 4 processors.
How many USB ports are provided on the board?
The motherboard provides four USB ports.
