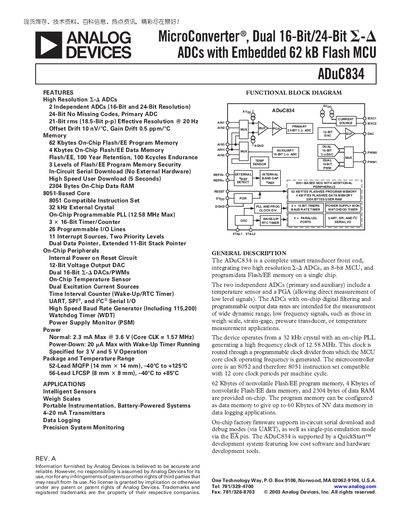

The document introduces the features and characteristics of the REV. A a ADuC834 MicroConverter® from Dinghao, including inventory, technical information, encyclopedia information, and hot news.
The ADuC834 is a complete smart‑transducer front‑end that integrates two high‑resolution ADCs (16‑bit and 24‑bit), an 8052‑compatible MCU core, flash/program memory, DACs, and on‑chip peripherals on a single chip. It is intended for intelligent‑sensor applications such as weigh scales, portable instrumentation, and data‑logging systems.
The document provides functional block diagrams, pin‑out tables, electrical specifications, power‑supply requirements, package dimensions (MQFP and LFCSP), and timing information for serial interfaces, enabling designers to implement the device in hardware and firmware.
| Flash Program Memory | 62 KB |
|---|---|
| Flash Data Memory | 4 KB |
| Primary ADC Resolution | 24 bits (no missing codes) |
| Maximum Core Clock | 12.58 MHz |
| Operating Voltage | 3 V – 5 V |
| Package Options | 52‑Lead MQFP (14 mm × 14 mm) and 56‑Lead LFCSP (8 mm × 8 mm) |
| Normal‑Mode Power Consumption | 2.3 mA @ 3.6 V |
It provides 62 KB of on‑chip flash/program memory.
The on‑chip PLL can generate up to 12.58 MHz.
The device is specified for both 3 V and 5 V operation.
It is offered in a 52‑lead MQFP (14 mm × 14 mm) and a 56‑lead LFCSP (8 mm × 8 mm).
