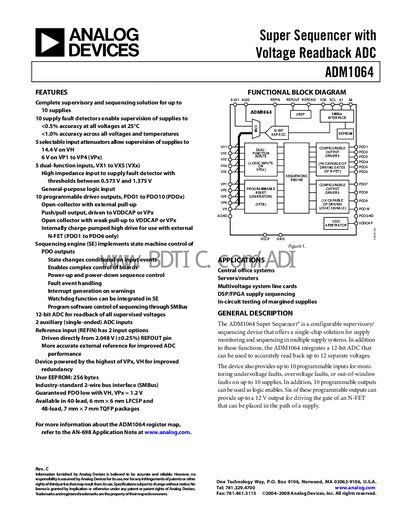

ADM1064 Rev. C is a super sequencer with voltage readback ADC for 10-way power monitoring and sequencing.
The ADM1064 Super Sequencer is a configurable supervisory and sequencing device that monitors up to ten supplies and provides a 12‑bit ADC for voltage readback. It offers programmable fault detection, logic inputs, and driver outputs capable of driving N‑FET gates for supply control.
The handbook includes functional block diagrams, detailed specifications, pin configuration tables, sequencing engine timing, SMBus interface details, and application examples such as central office systems, servers, and multivoltage line cards.
| Supply voltage range (VH, VPx) | VH 3.0 V to 14.4 V, VPx 3.0 V to 6.0 V |
|---|---|
| ADC resolution | 12 Bits |
| User EEPROM size | 256 bytes |
| Number of programmable driver outputs | 10 (PDO1‑PDO10) |
The device can supervise high‑voltage inputs from 3.0 V up to 14.4 V on the VH pin and from 3.0 V up to 6.0 V on the VPx pins.
