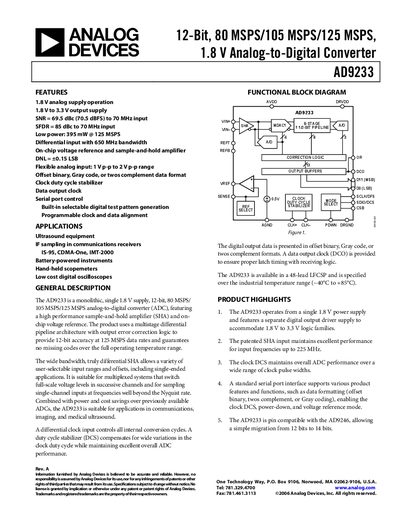

AD9233 is a monolithic 12-bit, 80 MSPS/105 MSPS/125 MSPS, 1.8 V analog-to-digital converter.
The AD9233 is a monolithic 12‑bit ADC that operates from a single 1.8 V supply and offers selectable 80, 105 or 125 MSPS sampling rates. It features a high‑performance sample‑and‑hold amplifier, on‑chip voltage reference, and a differential input architecture with up to 650 MHz bandwidth.
Designed for ultrasound, communications receivers, battery‑powered instruments and low‑cost oscilloscopes, the device is supplied in a 48‑lead LFCSP package and is rated for industrial temperature ranges (‑40 °C to +85 °C).
| Resolution | 12 bits |
|---|---|
| Analog Input Bandwidth | 650 MHz |
| Supply Voltage | AVDD 1.8 V, DRVDD 2.5 V |
| Package | 48‑lead LFCSP |
The ADC operates from a single 1.8 V analog supply (AVDD) and uses a separate 2.5 V digital supply (DRVDD).
The differential input bandwidth is specified at 650 MHz.
It is supplied in a 48‑lead LFCSP (lead‑frame chip scale package).
