Start here

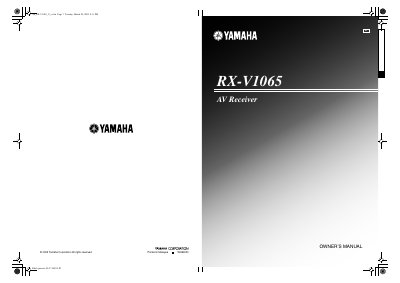

Yamaha RX-V1065 AV Receiver Owner's Manual
This manual begins with important safety instructions, warning symbols, and installation guidelines to ensure proper ventilation, avoid heat sources, and protect against electric shock. It also details the supplied accessories, front‑panel and rear‑panel connectors, and how to prepare the remote control and batteries.
The later sections cover basic and advanced operation, including speaker setup, HDMI and audio/video connections, sound‑field programs, Bluetooth, USB, FM/AM, HD Radio, XM/Sirius, and multi‑zone features. An appendix provides troubleshooting tips, a glossary, specifications, and a list of remote‑control codes.
Yamaha RX-V1065 specifications
| Power amplifier | Built‑in 7‑channel |
|---|---|
| Front L/R output power | 105 W + 105 W |
| Center output power | 105 W |
| Surround L/R output power | 105 W + 105 W |
| Surround back L/R output power | 105 W + 105 W |
| HDMI inputs | 4 |
| Minimum RMS output power (20 Hz‑20 kHz, 0.08 % THD, 8 Ω) | see specification |
All Yamaha RX-V1065 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum ventilation space required on the top of the unit?
You must allow at least 30 cm of ventilation space on the top of the unit.
What voltage settings are available for the General model?
The General model supports AC 110/120/220/230-240 V, 50/60 Hz.
What safety precautions should be taken when installing the RX‑V1065?
Install the unit in a well‑ventilated, cool, dry place, keep at least 30 cm clearance on top and 20 cm on the sides and back, avoid heat sources, and never open the enclosure.
How many HDMI inputs does the receiver provide?
The RX‑V1065 has four HDMI inputs.
