This document provides precautions for using the speaker, including avoiding distortion, not exceeding the maximum input power, not using chemical solvents for cleaning, avoiding sunlight and humidity, stable placement, not placing it on the same shelf as the turntable, and ensuring secure installation.

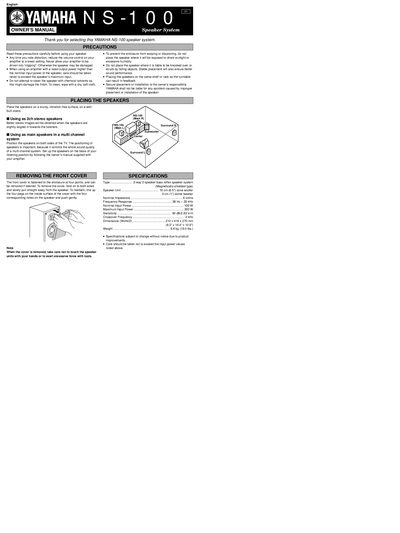

This document is the Owner's Manual for the Yamaha NS-100 speaker system. It includes safety precautions regarding amplifier power and placement, instructions for removing the front cover, and guidelines for positioning speakers for stereo or multi-channel use. The manual also details the specifications of the 2-way 2-speaker bass reflex system.
| System Type | 2-way 2-speaker bass reflex speaker system (Magnetically-shielded type) |
|---|---|
| Woofer | 16 cm (6.5") cone woofer |
| Tweeter | 3 cm (1") dome tweeter |
| Frequency Response | 38 Hz — 35 kHz |
| Nominal Input Power | 100 W |
| Maximum Input Power | 300 W |
| Sensitivity | 90 dB/2.83 V/m |
Reduce the volume if distortion is noted and never allow the amplifier to be driven into clipping to prevent speaker damage.
The speakers should be slightly angled in towards the listeners.
Hold on to both sides of the cover and slowly pull straight away from the speaker.
Bi-wiring uses two pairs of cables for woofer and tweeter separately to decrease modulation distortion caused by cable resistance.
