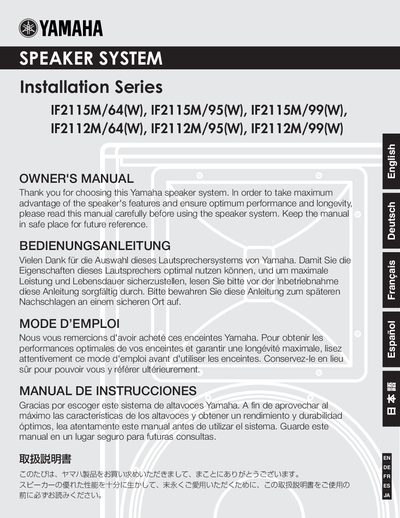

This manual describes the features and functions of the IF2115M/64(W), IF2115M/95(W), IF2115M/99(W), IF2112M/64(W), IF2112M/95(W), IF2112M/99(W) speaker system.
This manual provides instructions for the Yamaha IF2115M and IF2112M series loudspeakers. It covers safety precautions, installation methods including suspended mounting and eye bolt usage, and wiring configurations for Bi-Amp and Passive modes using Neutrik Speakon plugs. The document also explains how to rotate the rotatable horn from vertical to horizontal orientation.
The strength of the suspension points on the speaker is 60 kg per point maximum.
You must use three or more eye bolts for suspended installations.
The load for each eye bolt must be less than 185 kg when suspending at an angle of 45 degrees.
