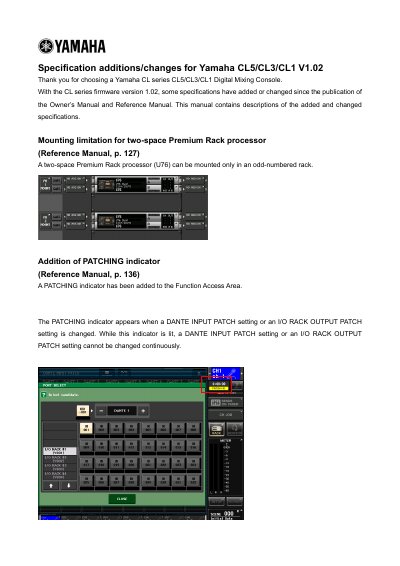

Yamaha CL5/CL3/CL1 Firmware 1.02 Specification Additions Manual

About this manual

This document outlines specification additions and changes for the Yamaha CL series (CL5, CL3, CL1) digital mixing consoles introduced in firmware version 1.02. It covers updates to mounting limitations for Premium Rack processors, the addition of a PATCHING indicator, and changes to MIDI PROGRAM CHANGE procedures.

What's inside

• Mounting limitation for two-space Premium Rack processor
• Addition of PATCHING indicator
• Using a Premium Rack with the MIDI PROGRAM CHANGE popup window
• Addition of options when loading a settings file
• Display of version information
• Operation when changing NETWORK settings
• Operation when changing settings in the DANTE SETUP popup window
• Changing the SECONDARY PORT setting
• Changing the ID
• I/O rack settings for scene recall

Specifications

Frequently asked questions

Can a two-space Premium Rack processor be mounted in an even-numbered rack?

No, a two-space Premium Rack processor (U76) can be mounted only in an odd-numbered rack.

What happens when the PATCHING indicator is lit?

When the PATCHING indicator is lit, a DANTE INPUT PATCH setting or an I/O RACK OUTPUT PATCH setting cannot be changed continuously.

Do SECONDARY PORT and CONSOLE ID settings change if the unit is initialized?

No, the SECONDARY PORT and CONSOLE ID settings are not changed, even if the CL series is initialized.
